Monday, December 31, 2012

സോളാര്‍ പ്ലാന്റുകൾ എങ്ങിനെ തിരഞ്ഞെടുക്കാം?



 നമുക്കാവശ്യമായ  സോളാര്‍ എനര്‍ജി പവർ പ്ലാന്റുകൾ എങ്ങിനെ തിരഞ്ഞെടുക്കാം?



സോളാര്‍ പവര്‍ വെക്കുന്നത് ഇലക്ട്രിസിറ്റി ബില്ല്‌ ലാഭിക്കാനാണെന്ന ഒറ്റക്കാര്യം നോക്കിയിട്ടാണെങ്കില്‍ അതിനുമുതിരാതെ ആ പണം കോപ്പറേറ്റീവ് ബാങ്കിലിട്ട് ഇന്റ്രെസ്റ്റ് കൊണ്ട് ബില്ലടക്കുന്നതാവും നല്ലത്, കാരണം അതാണ്‌ ലാഭകരം.
 സോളാര്‍ പാനല്‍ വൈദ്യുതീകരണം നിങ്ങളുടെ സംശയങ്ങള്‍ക്കുള്ള മറുപടി കാല്‍ടെക് എനെര്‍ജി  യുടെ പ്രോമോട്ടറായ അലിയൂ പാലത്തിങ്കല്‍ നല്‍കുന്നു.
 ഇലക്ട്രിസിറ്റി ബില്ലിന്റെ ഭാരം കൊണ്ടും,  തുടർച്ചയായുള്ള പവർ കട്ട് മൂലവും ഇന്‍ഡ്യയില്‍ പ്രത്യേകിച്ചും കേരളത്തില്‍ നല്ലൊരു കൂട്ടം ആളുകള്‍  സോളാര്‍ പവര്‍ ഉപയോഗപ്പെടുത്താന്‍ ശ്രമിക്കുന്ന ഈ കാലത്ത്
 പലപലതരത്തിലുള്ളതും തലത്തിലുള്ളതുമായ അവകാശവാദങ്ങൾ ഉന്നയിച്ച് കൊണ്ടുള്ള  പൊള്ളയായ പരസ്യങ്ങൾ ദിവസേനയെന്നോണം കാണുമ്പോൾ  ഉപഭോക്താവിന് ആശയകുഴപ്പമുണ്ടാവുക സ്വാഭാവികമാണ്‌. കൃത്യമായ കപ്പാസിറ്റിയിൽ,

ശരിയായി പ്രവർത്തിക്കുന്നത് തിരഞ്ഞെടുക്കാതെ പരസ്യങ്ങളിലും മറ്റും കുടുങ്ങി വിലകുറവ് മാത്രം നോക്കി സോളാർ പവർ പ്ലാന്റുകൾ സ്ഥാപിച്ചാൽ സ്ഥാപിച്ചാൽ സാമ്പത്തിക നഷ്ടത്തിനുപുറമെ വീടിനുമുകളിലെ സ്ഥലവും നഷ്ടമാകും.

ഇലക്ട്രിസിറ്റി ബില്ല് ലാഭിക്കാനായി മാത്രം  സോളാർ പ്ലാന്റുകൾ സ്ഥാപിക്കരുതെന്നാണാദ്യമേ സൂചിപ്പിക്കാനുള്ളത് കാരണം സോളാർ പവർ പ്ലാന്റിനായി മുടക്കുന്ന തുക ബാങ്കിൽ ഫിക്സഡ് ഡെപ്പോസിറ്റായി നൽകിയാൽ ലഭിക്കുന്ന വരുമാനം കൊണ്ട് ഇലക്ട്രിസിറ്റിബില്ല് അടക്കാനാവും.

ഔദ്യോഗികമായും അനൌദ്യോഗികമായും ലോഡ് ഷെഡ്ഡിങ്ങടക്കം പല സമയങ്ങളിലും വൈദ്യുതിലഭിക്കാത്ത കേരളത്തിലെ വീടുകളിൽ സ്വന്തമായി വൈദ്യുതി ഉത്പാദിപ്പിച്ച് ഒരു പരിധിവരെയെങ്കിലും ഇലക്ട്രിസിറ്റിൽ സ്വയം പര്യാപ്തത കൈവരിക്കുക ഒപ്പം ജലസ്രോദസ്സുകളെ പ്രധാനമായും ഡിപ്പെൻഡ് ചെയ്യുന്ന കേരള വൈദ്യുത മേഖലയെ രക്ഷിക്കുക,

 പരിസ്ഥിതിയേയും ഭൂമിയേയും സംരക്ഷിക്കുക തുടങ്ങിയ വിശാല ഉദ്ദേശങ്ങളായിരിക്കണം സോളാർ പവർ പ്ലാന്റ് സ്വന്തമായി സ്ഥാപിക്കാൻ പോകുന്ന ഉപഭോക്താവ് ലക്ഷ്യം വെക്കേണ്ടത്.

സോളാർ പവർ പ്ലാന്റിന്റെ കപാസിറ്റി
വൈദ്യുതികൊണ്ട് പ്രവർത്തിക്കുന്ന സർവ്വതും സോളാർ പവറിൽ പ്രവർത്തിപ്പിക്കാമെങ്കിലും, സാമാന്യം നല്ല വിലയുള്ളതും കപ്പാസിറ്റിക്കനുബന്ധമായി കൂടുന്നതുമാണ് സോളാർ പവർ പ്ലാന്റുകളുടെ വില.

അതുകൊണ്ട്തന്നെ ഏതൊക്കെ ഉപകരണങ്ങളാണ് സോളാർ പവറിൽ പ്രവർത്തിക്കേണ്ടതെന്ന ഒരു ധാരണ  ആദ്യമേയുണ്ടായാൽ കൃത്യമായ കപ്പാസിറ്റിയിലുള്ള പ്ലാന്റ് തിരഞ്ഞെടുക്കാൻ സാധിക്കും.

ഉദാഹരണത്തിന്, എ.സി (എയർ കണ്ടീഷൻ), പമ്പുകൾ തുടങ്ങിയ ഉപകരണങ്ങൾ ഉൾപ്പെടുത്തി സോളാർ പവർ പ്ലാന്റിന്റെ കപ്പാസിറ്റി കൂട്ടുന്നതിനേക്കാൾ,  ലൈറ്റ്, ഫാന്, ടി.വി. തുടങ്ങിയവ മാത്രം പ്രവർത്തിപ്പിക്കാനായി സോളാർ പവർ പ്ലാന്റുകൾ തിരഞ്ഞെടിക്കുന്നതാണ് ഉത്തമം.

 അതുപോലത്തന്നെ, കൂടുതൽ ഉപകരണങ്ങൾ സോളാറിൽ പ്രവർത്തിപ്പിക്കാനായി ഉൾപ്പെടുത്തുന്നതിനേക്കാൾ നല്ലത്  അത്യാവശ്യത്തിന് പ്രവർത്തിപ്പിക്കേണ്ട ഉപകരണങ്ങൾ കൂടുതൽ സമയം പ്രവർത്തിപ്പിക്കാനാവശ്യമായ പ്ലാന്റ് തിരഞ്ഞെടുക്കുന്നതാണ്.

 അതായത്, കൂടുതൽ ഉപകരണങ്ങൾ ഉൾപ്പെടുത്തി 2000 വാട്ട് / 5 മണിക്കൂർ പ്രവർത്തിക്കുന്ന പ്ലാന്റിനേക്കാൾ ഉത്തമം 1000വാട്ട് പ്ലാന്റ് പത്തോ പതിനഞ്ചോ മണിക്കൂർ പ്രവർത്തിക്കുന്ന പ്ലാന്റാണ് ഉത്തമം.

 ഇതൊക്കെയാണെങ്കിലും ഇതൊക്കെയാണെങ്കിലും ഉപഭോക്താവിന്റെ കഴിവനുസരിച്ച് സോളാർ പവർ പ്ലാന്റിന്റെ കപ്പാസിറ്റി തീരുമാനിക്കാം


ബാക്കപ്പ് ടൈം
സൂര്യപ്രകശമുള്ളപ്പോൾ മാത്രമേ സോളാർ പാനലുകൾ വൈദ്യുതി ഉത്പാദിപ്പിക്കുകയുള്ളൂ .ഇലക്ട്രിസിറ്റിയില്ലാത്ത, രാത്രിയിലോ മേഘാവൃതമായ സമയത്തോ എത്ര സമയം പവർ പ്ലാന്റ് വൈദ്യുതി ലഭ്യമാക്കും എന്നതാണ് ബാക്കപ്പ് ടൈമുകൊണ്ടുദ്ദേശിക്കുന്നത്. ഉദാഹരണത്തിന്, 1000 വാട്ട് പവർ / ബാക്ക് അപ്പ് ടൈം ഏഴുമണിക്കൂർ എന്നുപറഞ്ഞാൽ;

 ദിവസത്തിൽ സൂര്യപ്രകാശമില്ലെങ്കിലും  ഏഴുമണിക്കൂർ സമയം 1000W വൈദ്യുതി ലഭിക്കും. കപ്പാസിറ്റിയും, ബാക്കപ്പ് ടൈമും തീരുമാനിച്ചുകഴിഞ്ഞതിനു ശേഷം ഉപഭോക്താവിനത് സോളാർ കമ്പനികളെ സമീപിക്കാം.

ഇനിയാണ് ഉപഭോക്താവ് വഞ്ചിക്കപ്പെടാനുള്ളതെല്ലാമിരിക്കുന്നത്.
വാങ്ങിക്കേണ്ട കപ്പാസിറ്റിയും ബാക്കപ് ടൈമും അറിയീച്ചാൽ മോഹവിലയോടെ പല ഉറപ്പുകളുമായും സെയിത്സ് മാൻ നിങ്ങളെ സമീപിക്കും. നിങ്ങൾക്ക് തരാൻ പോകുന്ന സോളാർ പവർ പ്ലാന്റിന്റെ ഓരോ ഘടകങ്ങളും വിലയിരുത്താതെ സെയിത്സ് മാൻ തന്ന ‘ഉറപ്പിൽ’ സോളാർ പവർ പ്ലാന്റ് സ്ഥാപിച്ചാൽ,

തീരെ പ്രവർത്തിക്കാത്തതോ അപൂർണ്ണമായി പ്രവർത്തിക്കുന്നതോ ആയ നീല നിറത്തിലുള്ള കുറച്ച് ഗ്ലാസ്സ് ഫ്രെയിമുകളാവും നിങ്ങളുടെ ടെറസ്സിൽ ഇരിക്കുന്നത്. നിങ്ങൾക്ക് വാങ്ങാനായി സൂചിപ്പിച്ച സോളാർ പവർ പ്ലാന്റിന്റെ സ്പെസിഫിക്കേഷൻ നോക്കിയാൽ സ്വയമുറപ്പിക്കാനാവും സൂചിപ്പിച്ച കപ്പാസിറ്റിയും ബാക്കപ്പ് ടൈമും ലഭിക്കുമോ എന്നത്. ചില ഉദാഹരണങ്ങൾ താഴെ കൊടുത്തിട്ടുണ്ട്,

സ്പെസിഫിക്കേഷൻ നോക്കി മനസ്സിലാക്കാനായില്ലെങ്കിൽ സോളാർ കമ്പനിയിലെ ആളുകളോട് തന്നെ കണക്കുകൂട്ടി പറഞ്ഞുതരാനോ ആവശ്യപ്പെടുക.

ബാറ്ററികളുടെ കപ്പാസിറ്റിയാണ്  baackup time  അടിസ്ഥാനപ്പെടുത്തുന്നത്,  ബാറ്ററിയുടെ കപ്പാസിറ്റി പറയുന്നത്  Ampere Hour ( Ah) ലാണ്. ഉദാഹരണത്തിന് 125Ah/ 12Volts. ഒരു ബാറ്ററിയുടെ Ah അറിഞ്ഞാൽ അതെത്ര വൈദ്യുതി / എത്രസമയം ഉത്പാദിപ്പിക്കുമെന്നും അതുകൊണ്ടുതന്നെ എത്ര ബക്കപ്പ് കിട്ടുമെന്നും കണക്കുകൂട്ടി കണ്ടുപിടിക്കാം.

ഉദാഹരണത്തിന്, 125Ah/ 12Volts ബാറ്ററി 12 X125 = 1500 Whr = 1.5 യൂണിറ്റ് വൈദ്യുതി ഉത്പാദിപ്പിക്കും;

 ഈ ബാറ്ററി ഒരു മണിക്കൂർ സമയം 1500വാട്ട് വൈദ്യുതി  ഉത്പാദിപ്പിക്കുമെന്ന് നമ്മൾ കണക്കുകൂട്ടി കണ്ടെത്തി!.

എന്നാലിതുറപ്പിക്കാനായിട്ടില്ല!
നമ്മൾ കണക്കുകൂട്ടിയ, ഒരു മണിക്കൂർ നേരത്തേക്ക് 1500  ഈ ബാറ്ററി  ലഭ്യമാക്കുമോ എന്നതുറപ്പിക്കാൻ മറ്റൊന്ന് കൂടി നോക്കേണ്ടതുണ്ട്, ബാറ്ററിയുടെ കപ്പാസിറ്റി അധവാ “ C ” .

വിശദമാക്കാം.

ബാറ്ററികൾ തിരഞ്ഞെടുക്കുമ്പോൾ വെറും “ Ah “ മാത്രം നോക്കിയാൽ പോര അതിനൊപ്പം “C”   യും നോക്കണം എന്നാലേ തിരഞ്ഞെടുത്ത ബാറ്ററി ആവശ്യത്തിനുപകരിക്കുമോ എന്നുറപ്പിക്കാനാവൂ.
125 Ah/ C3 ബാറ്ററി ഉത്പാദിപ്പിക്കുന്ന പവറും തരുന്നതും  125Ah / C10  ഒന്നല്ല.

125 Ah/ C3 ബാറ്ററി  500 വാട്ട് പവർ  മൂന്ന് മണിക്കൂർ സമയം ഉത്പാദിപ്പിക്കുമ്പോൾ  125Ah / C10  ബാറ്ററി 150 വാട്ട് പവർ പത്തുമണിക്കൂർ സമയത്തേക്ക് ഉത്പാദിപ്പിക്കുന്നു.

അതായത്, 500 വാട്ട് ആവശ്യമുള്ള ഒരാൾ തിരഞ്ഞെടുക്കേണ്ട ബാറ്ററി 125 Ah/ C3 ആണ്.  125Ah / C10  തിരഞ്ഞെടുത്താൽ ആവശ്യമുള്ള പവർ ലഭിക്കില്ലെന്ന് പറയേണ്ടതില്ലല്ലോ!

വിലയുടെ കാര്യമെടുത്താൽ, C3  റേറ്റിങ്ങുള്ളവക്ക്  C10 നെക്കാൾ വിലയും കൂടും!
മിക്കവരും ഈ  “C”  റേറ്റിങ്ങ് കാണിക്കാറില്ലെന്നതാണ് യാഥാർത്ഥ്യം.

അറിയുക, 125 Ah ബാറ്ററിയുടെ ഒരു നിശ്ചിത ശതമാനമേ ഉപയോഗിക്കാൻ പാടുള്ളു, അതാണ്  " DoD" Depth of Discharge  എന്നറിയപ്പെടുന്നത്,

125Ah/ DoD 85%   എന്നു സൂചിപ്പിച്ചാൽ അതിനർത്ഥം നമുക്കുപയോഗിക്കാനാവുക 106Ah മാത്രമാണ്!
ചുരുക്കത്തിൽ തിരഞ്ഞെടുക്കുന്ന ബാറ്ററിയുടെ  ഈ മൂന്ന് പരാമീറ്ററുകളും മനസ്സിലാക്കി, ഉദ്ദേശിച്ച ബാക്കപ്പ് ലഭിക്കുമോ എന്നുറപ്പുവരുത്തുക അല്ലാത്ത പക്ഷം കമ്പനികൾ  പറയുന്ന ബാക്കപ്പ് ടൈം / പവർ  ലഭിക്കണമെന്നില്ല.

സൂര്യപ്രകാശത്തിന്റെ അളവനുസരിച്ച് കൂടിയും കുറഞ്ഞും ചാര്ജ്ജ് ചെയ്യുകയും തുടര്ച്ചയായി റീചാര്ജ്ജ് ചെയ്യുകയും ചെയ്യുന്നതിനാല്‍ ഡീപ് ഡിസ്ചാര്ജിങ്ങ് ടൈപ്പ് ബാറ്ററികളാണ് സോളാർ പവർ പ്ലാന്റുകളിൽ ഉപയോഗിക്കേണ്ടത്.

സോളാർ കമ്പനി ഓഫർ ചെയ്യുന്ന ബാറ്ററി സോളാർ പവർ പ്ലാന്റുകളിൽ ഉപയോഗിക്കാൻ പറ്റുന്നതാണോ എന്ന് ശ്രദ്ധിക്കുക. കാര്‍ ബാറ്ററികൾ, നിലവിൽ ഉപയോഗിക്കുന്ന ബാറ്ററികൾ സോളാർ പവർ പ്ലാന്റുകളിൽ ഉപയോഗിച്ചാൽ മുകളിൽ സൂചിപ്പിച്ച ച്ഛാർ‌ജിങ്ങ് ഡിസ്ചാർ‌ജിച്ച് മൂലം അധികകാലം പ്രവർത്തിക്കില്ല.


സോളാർ പവർ പ്ലാന്റിന്റെ ഘടകങ്ങൾ തിരഞ്ഞെടുക്കുമ്പോൾ ശ്രദ്ധിക്കേണ്ടത്.
സോളാര്‍ പാനലുകള്‍ കൺസ്ട്രക്ഷൻ (നിർമ്മിതി)
സൂര്യപ്രകാശത്തില്‍ നിന്നും വൈദ്യുതി ഉത്പാദിപ്പിക്കു സോളാര്‍ പാനലുകളാണ് സോളാർ പവർ പ്ലാന്റിന്റെ പ്രധാന ഘടകം. പ്രധാനമായും മൂന്ന് വിഭാഗത്തിലുള്ള സോളാർ പാനലുകളാണുള്ളത്, മോണോ ക്രിസ്റ്റലൈന്‍ , പോളി ക്രിസ്റ്റലൈന്‍,

തിൻ ഫിലിം.  ഇവയിൽ പ്രവർത്തന ക്ഷമത കുറഞ്ഞതിനാൽ തിൻ ഫിലിം വിഭാഗമൊഴിച്ച് മറ്റ് രണ്ട് വിഭാഗമാണ് സാധാരണയായുള്ളത്.
നിർമ്മിതിയിലെ വ്യത്യാസമാണ് തരം തിരിവിനാധാരം. സാധാരണ രീതിയിൽ കറുപ്പ് നിറത്തിലാണ് മോണോ വിഭാഗത്തെ കാണുക,

 പ്രവർത്തന ക്ഷമത മോണോവിഭാഗത്തിന് പോളിയെ അപേക്ഷിച്ച് കൂടുതലാണ്, വിലയും മോണോ ക്രിസ്റ്റലൈൻ വിഭാഗത്തിനാണ് കൂടുതൽ.

ഏറ്റവും ചുരുങ്ങിയത് മുപ്പത് വർഷം ഉപയോഗിക്കേണ്ട, വെയിലും മഴയും കൊള്ളേണ്ട  ഒന്നാണ് സോളാർ പാനലുകൾ അതുകൊണ്ടുതന്നെ ഗുണനിലവാരത്തിൽ നിർമ്മിക്കപ്പെട്ടതാണോ എന്നുറപ്പുവരുത്തൽ വളരെ പ്രധാനമാണ്. കാഴ്ചയിൽ തന്നെ നിലവാരമുള്ള പാനലുകൾ തിരിച്ചറിയാനാവും.

അലുമിനിയം കൊണ്ട് ഷാർപ്പ് മൂലകളില്ലാതെ ഉണ്ടാക്കിയ ഫ്രെയിമിലുള്ള പാനലുകൾ നല്ലതാണ്‌.  പാനൽ ഫ്രെയിമുകളുടെ മൂലകൾ ഷാർപ്പായി പൊന്തിനിൽക്കുന്നതാണെങ്കിൽ ആഭാഗത്ത് പൊടിയും ചെളിയുമൊക്കെ തടഞ്ഞുനിന്ന് പാനലുകളിൽ സൂര്യപ്രകാശം തട്ടാതെ പൂർണ്ണ കപ്പാസിറ്റിയിൽ വൈദ്യുതി ഉതപാദിപ്പിക്കാതിരിക്കാൻ സാധ്യതയുണ്ട്.

കോർണ്ണറുകൾ ഷാർപ്പല്ലെങ്കിൽ മഴവെള്ളവും മറ്റും തങ്ങിനിൽക്കാതെ ഒഴുകുന്നതിനാൽ ഷാർപ്പില്ലാത്ത കോർൺറുകളുള്ളവ തിരഞ്ഞെടുക്കാൻ ശ്രദ്ധിക്കുക.

സോളാർ പാനലുകൾ - പവർ
വൈദ്യുതി ഉത്പാദിക്കാനുള്ള ശേഷിയുടെ അടിസ്ഥാനത്തിൽ പല വാട്ട് പവറിലാണ് സോളാർ  പാനലുകള്‍ ലഭിക്കുന്നത്, ഉദാഹരണം 10, 50, 200, 250 W  അങ്ങിനെ പോകുന്നു. തിരഞ്ഞെടുക്കുന്ന പാനലുകളുടെ പവർ കണക്കാക്കൽ വളരെ പ്രധാനമാണ്.

പ്ലാന്റിന്റെ കപ്പാസിറ്റി എന്നത്  ഏറ്റവും ചുരുങ്ങിയത് സോളാർ പാനലുകളുടെ കപ്പാസിറ്റിയുടെ ആകെത്തുകയായിരിക്കണം. 1000വാട്ട് പ്ലാന്റിന് ഏറ്റവും ചുരുങ്ങിയത് 250വാട്ടിന്റെ നാലുപാനലുകളോ 200വാട്ടിന്റെ അഞ്ച്പാനലുകളോ വേണം. ഇതിൽ കുറഞ്ഞാൽ അറിയുക നിങ്ങളുടെ പ്ലാന്റ് നിങ്ങളുദ്ദേശിച്ച പവർ തരുന്ന ഒന്നല്ല!

250വാട്ട് എന്നെഴുതിയിരിക്കുന്ന ഒരു സോളാർ പാനൽ 250വാട്ട് ലഭ്യമാക്കുക STC ( Standard Testing Condition) ൽ മാത്രമാണ്, Standard Testing Condition = 25 ഡിഗ്രി ചൂടും 1000W/sq.m സൂര്യപ്രകാശത്തിന്റെ ശക്തി.

 ഇവയിൽ വ്യത്യാസമുണ്ടാവുമ്പോൾ പവർ കുറയും. എല്ലാസമയവും വെയിലത്തിരിക്കുന്ന സോളാർ പാനലുകളുടെ ടെമ്പെറേചർ അമ്പതിനോടടുത്ത് വന്നാൽ 250 വാട്ട് പാനൽ 250 ൽ കുറവേ ഉത്പാദിപ്പിക്കൂ, എത്ര ഉത്പാദിപ്പിക്കുമെന്നത്  പ്രസ്ഥുത സോളാർ പാനലിന്റെ ടെമ്പെറെച്ചര്‍ കോയിഫിഷ്യന്റ് അനുസരിച്ചിരിക്കും.

അങ്ങിനെ നോക്കുമ്പോൾ, 1000വാട്ട് പ്ലാന്റിന്  1000വാട്ടിനേക്കാൾ കൂടുതൽ പവർ വേണമെന്ന് മനസ്സിലാവും.


ടെമ്പെറെച്ചര്‍ കോയിഫിഷ്യന്റ്
250 W എന്നെഴുതിരിക്കുന്ന ഒരു സോളാർ പാനൽ 250 W വൈദ്യുതി ഉത്പാദിപ്പിക്കുക 25 ഡിഗ്രി സെന്റിഗ്രേഡിലാണ്. സൂര്യപ്രകശത്തിലിരിക്കുന്ന സോളാർ പാനലിന്റെ ചൂട് കൂടുന്നതനുസരിച്ച്  അതുത്പാദിപ്പിക്കുന്ന വൈദ്യുതിയിലും കുറവുവരും,

 എത്ര കുറവെന്നത്  Temperature Coeff,   താപവുമനുസരിച്ചിരിക്കും. ഒരേകദേശ കണക്കായി 35 ഡിഗ്രി ചൂടിൽ സൂര്യപ്രകാശം കൊണ്ടിരിക്കുന്ന സോളാർ പാനൽ, നാല്പത്തഞ്ചു ഡിഗ്രി ചൂടിൽ പ്രവർത്തിക്കുകയാണെങ്കിൽ 20XTemperature Coeff വാട്ട് പവർ 250 W ൽ നിന്നും കുറവുമാത്രമേ ലഭിക്കുകയുള്ളൂ.

പവർ ടോളറൻസ്
സോളാർ പാനലുകൾ യഥാർത്ഥത്തിൽ എത്ര വൈദ്യുതി ലഭ്യമാക്കും എന്ന് കണ്ടെത്താനാവുന്ന മറ്റൊരു parameter ആണിത്. നിലവാരമുള്ള എല്ലാ സോളാർ പാനലുകളിലും ഇത് സൂചിപ്പിച്ചിരിക്കും, ഉദാഹരണത്തിന് 250 W  സോളാർ പാനലിൽ എഴുതിയിരിക്കുക 250+- 5% ( എന്നോ +3%) എന്നോ ഒക്കെ ആയിരിക്കും.

ഇതിനർത്ഥം 250 വാട്ട് സോളാർ പാനലിൽ നിന്നും 237.5 വാട്ടോ അല്ലെങ്കിൽ 262.5 വാട്ടോ ലഭിച്ചേക്കാം എന്നാണ്.

ഉപയോഗിക്കുന്ന മെറ്റീരിയലിന്റെയും നിർമ്മിക്കുന്നതിന്റേയും മറ്റും നിലവാരമനുസരിച്ച് ഇതിൽ വ്യത്യാസവും വരും.ഗുണനിലവാരമുള്ള പഥാർത്ഥങ്ങളും  അത്യാധുനികമായ സാങ്കേതികത്തോടെ നിലവാരത്തിൽ നിർമ്മിച്ച പാനൽ നിർമ്മാതാക്കൾ Positive Power Tolerance അതായത്  “ + “ മാത്രം നൽകുന്നവരുണ്ട്,

ഉദാഹരണത്തിന് 250+ 0 / 3% അതായത് . അത്തരം സോളർ പാനലുകൾ  250 W  ഓ   257.5 വാട്ടോ  ഉറപ്പുനൽകുന്നു അതായത് ഏറ്റവും ചുരുങ്ങിയത് എഴുതിയ 250 W power out put  തരുന്നെന്നർത്ഥം.

വാറണ്ടി
ഉപഭോക്താവ് ആശയകുഴപ്പത്തിലാവാൻ സാധ്യതയുള്ള മറ്റൊരു വിഷയമാണിത്.
അടിസ്ഥാനപരമായി സിലിക്കൺ കൊണ്ട് നിർമ്മിച്ചതിനാൽ കാലപ്പഴക്കം കൊണ്ട് കേടുവരുന്ന ഒന്നല്ല  സോളാർ പാനലുകൾ, അതുകൊണ്ടുതന്നെ 25വർഷം വാറണ്ടി എന്ന് മാത്രം പറയുന്നതിൽ ചില ചതികൾ ഒളിഞ്ഞുകിടപ്പുണ്ട്.

കാലപ്പഴക്കം കൊണ്ട് സോളാർ പാനലിന്റെ വൈദ്യുതി ഉത്പാദിപ്പിക്കാനുള്ള കഴിവിനാണ് കുറവുവരിക അല്ലാതെ പാനലുകൾ അമ്പതുവർഷം കഴിഞ്ഞാലും കാണാൻ ഒരുപോലിരിക്കാം.

ഇന്ന് സ്ഥാപിക്കുന്ന 250വാട്ട് പവറ് തരുന്ന ഒരു സോളാർ പാനൽ രണ്ടുവർഷം കഴിഞ്ഞാൽ അത്രയും തരണമെന്നില്ല. നിർമ്മിക്കാനുപയോഗിച്ച അടിസ്ഥാന പദാർത്ഥങ്ങളുടെ ഗുണനിലവാരവും, നിർമ്മിതിക്കുപയോഗപ്പെടുത്തുന്ന  സാങ്കേതികതയേയും അടിസ്ഥാനപ്പെടുത്തിയാണ് എത്ര ശതമാനം കുറവുവരുമെന്നതിനടിസ്ഥാനമിരിക്കുന്നത്.

നിര്‍മ്മാണത്തിന്റെ പല ഘട്ടങ്ങളിലും പലതരത്തിലുമുള്ള ഗുണനിലവാരങ്ങളനുസരിച്ച് പാനലുകളുടെ അടിസ്ഥാന ഘടകമായ സെല്ലുകളുടെ നിലവാരം നാലായി ( അനൌദ്യോഗികമായി) തിരിച്ചിട്ടുണ്ട്. ഈ പല നിലവാരത്തിലുമുള്ള സെല്ലുകൾ കൊണ്ടുണ്ടാക്കുന്ന സോളാർ പാനലുകള്‍ കാലപ്പഴക്കം കൂടുമ്പോള്‍ വൈദ്യുതി ഉത്പാദിപ്പിക്കുന്നതിലും വ്യത്യാസപ്പെട്ടിരിക്കും; ഇവിടെയാണ്‍ വാറണ്ടിയുടെ മറിമായങ്ങളിരിക്കുന്നത്.

ഇരുപത്തഞ്ചുവര്‍ഷം വാറണ്ടി എന്നല്ല, 25 വര്ഷം കഴിഞ്ഞാല്‍ എത്ര ശതമാനം പവര്‍ തരുമെന്നതിനാണ്‍ വാറണ്ടി നല്‍കേണ്ടത്. 25 വർഷം കഴിഞ്ഞാൽ 80% പവർ തരും എന്നതിനേക്കാൾ എന്തുകൊണ്ടും നല്ലത് പത്തുവര്‍ഷമോ അഞ്ചു വര്ഷമോ കഴിഞ്ഞാൽ എത്ര ഔട്ട് പുട്ട് പവർ തരുമെന്ന് സൂചിപ്പിക്കുന്നതാണ്. അതുപോലെ ചുരുങ്ങിയ കാലയളവിൽ എത്ര പവർ തരുമെന്ന് സൂചിപ്പിക്കുന്ന കമ്പനികളുടെ സോളാർ പാനലുകളാൺ ഉത്തമം.

വിശദമാക്കാം;  80% Power output @ 25 വര്ഷം എന്നുപറയുന്നതിനേക്കാള്‍ എന്തുകൊണ്ടും നല്ലത്, 90% Power output @ 5 വര്ഷം എന്നോ 10 വര്ഷം എന്നോ പറയുന്ന സോളാർ പാനലാവും.

100% Power output @ 10 വര്ഷത്തേക്ക് വാറണ്ടി കൊടുക്കുന്ന അത്യാധുനിക സോളാർ പാനലുകളും ഇന്ന് മാർക്കെറ്റിൽ ഉണ്ട്. ഇത്രയും കാര്യങ്ങള്‍ ശ്രദ്ധിച്ചാല്‍ പാനലുകള്‍ വാങ്ങിക്കുമ്പോൾ ശ്രദ്ധിക്കേണ്ട പ്രധാനപ്പെട്ട കാര്യങ്ങളായി.

ഇന്‍വേര്‍ട്ടർ
തന്റെ വീട്ടിലുള്ള ഇൻ‌വേർട്ടറുകൾ  സോളാർ പവർ പ്ലാന്റുകളിൽ ഉപയോഗിച്ചുകൂടേ എന്നത് മിക്ക ഉപഭോക്താക്കൾക്കുമുള്ള ഒരു സംശയമാണ്. സോളാർ ഇൻ‌വേർട്ടർ കരുതുന്നതുപോലെ വെറുമൊരു ഇൻ‌വേർട്ടറല്ല, അതിനൊപ്പം സോളാർ പവർ ചാർജിങ്ങ് കണ്ട്രോൾ ചെയ്യാനുള്ളതെല്ലാം അടങ്ങിയ ഒന്നാണ്. ഇൻ‌വേർട്ടറുകളിൽ പ്രധാനമായും നോക്കേണ്ടത് രണ്ടുകാര്യമാണ്, ഒന്ന് കപ്പാസിറ്റി രണ്ട് വേവ് ഫോം.

പ്രവർത്തിപ്പിക്കേണ്ട ഉപകരണങ്ങളുടെ പവറിന്റെ ആകെത്തുകയായിരിക്കണം സോളാർ കമ്പനി ഓഫർ ചെയ്യുന്ന ഇൻ‌വേർട്ടറിന്റെ കപ്പാസിറ്റി. വേവ്ഫോം Pure Sine wave  ആകുന്നതാണുത്തമം.


സാമാന്യം നല്ല വിലയുള്ള ഒന്നാണ് സോളാർ പവർ പ്ലാന്റുകൾ, അതു വാങ്ങുമ്പോൾ മുകളിൽ സൂചിപ്പിച്ചതെല്ലാം നോക്കി മനസ്സിലാക്കി ഉറപ്പുവരുത്തിമാത്രം വാങ്ങിക്കുക അല്ലെങ്കിൽ ഉറപ്പിച്ചോളൂ, നിങ്ങളുടെ വീട്ടിലെ ഉപകരണങ്ങൾ പ്രവർത്തിക്കുന്നത് സോളർ പവറിലല്ല കെ.എസ്.ഇ.ബി ഇലക്ട്രിസിറ്റിയിൽ തന്നെയായിരിക്കും.
വിലകുറവില്‍ സോളാര്‍ പ്ലാന്റുകള്‍ ഓഫര്‍ ചെയ്യുന്ന പരസ്യകമ്പനികളോട് മുകളിൽ സൂചിപ്പിച്ച കാര്യങ്ങള്‍ ചോദിച്ചുമനസ്സിലാക്കി കൃത്യമായി സർ‌ട്ടിഫിക്കറ്റുകളുള്ളവ വാങ്ങിക്കാന്‍ എല്ലാവരും ശ്രദ്ധിക്കുക, പരസ്യക്കെണിയില്‍ വീഴാതിരിക്കുക, നല്ല സോളാര്‍ പാനലുകൾക്ക് നല്ല വില കൊടുക്കണം ആരുകുറവില്‍ തരുന്നുവോ ശ്രദ്ധിക്കുക അതിലെന്തോ ഒളിഞ്ഞുകിടപ്പുണ്ട്.
ഹൈലൈറ്റ്സ്:
1. സോളാർ പ്ലാന്റിന്റെ കപ്പാസിറ്റി ഏറ്റവും ചുരുങ്ങിയത് തുല്യമായ സോളാർ പാനലുകളുടെ കപ്പാസിറ്റിയുടെ ആകെത്തുകയായിരിക്കണം, പാനലുകൾ IEC 61215, IEC 61730 തുടങ്ങിയവയുള്ളതാണോ എന്നുറപ്പുവരുത്തുക.
2.ബാറ്ററിയുടെ  മാത്രം നൊക്കിയാൽ പോര,    യും യും നോക്കി പറയുന്ന ബാക്കപ്പ് ലഭിക്കുമോ എന്നുറപ്പുവരുത്തണം
3.ബാറ്ററിയുടെ കപ്പാസിറ്റി കൂട്ടിയാൽ മാത്രം  ബാക്കപ്പ് ടൈം ലഭിക്കില്ല, കൂട്ടിയ കപ്പാസിറ്റി ചാർജ്ജ് ചെയ്യാനുള്ള സോളാർ പാനലുകൽ അധികമായിട്ട് വേണം
4.വാറണ്ടി ലഭിക്കേണ്ടത് ഇത്രവർഷം ഇത്ര പവർ തരുമെന്നതിനായിരിക്കണം അല്ലാതെ 25 വർഷം വാറണ്ടി എന്നതല്ല, അഞ്ചോ പത്തോവർഷം കഴിയുമ്പോൾ എത്ര പവർ ലഭിക്കുമെന്നതിനുള്ള വാറണ്ടിയാണുത്തമം.
5.ഇന്‌വേർട്ടർ വാങ്ങുമ്പോൾ  “ Watt “  1000 Watt കപ്പാസിറ്റിയിൽ വാങ്ങുന്നതാണ്  “ VA “ 1000 VA  യിൽ വാങ്ങുന്നതിനേക്കാൾ ഉത്തമം.

സോളാർ പവർ‌ പ്ലാന്റുകളുടെ ബാക്കപ്പ് ടൈം


സോളാർ പവർ  പ്ലാന്റുകൾ  വാങ്ങാൻ പോകുന്നവർ  ചിന്തിക്കുന്ന ഒരു വിഷയമാണ് ബാക്കപ്പ് ടൈം.
ഇലക്ട്രിസിറ്റിയില്ലാത്ത, രാത്രിയിലോ മേഘാവൃതമായ സമയത്തോ എത്ര സമയം  ഉപകരണങ്ങൾ പ്രവർത്തിക്കുമെന്നാണ്  ബാക്കപ്പ്  ടൈമെന്ന് പറയുന്നത്.  മൂന്ന് മണിക്കൂർ മുതൽ മുപ്പതുമണിക്കൂർ വരെ ബക്കപ്പ് ടൈം നൽകുന്ന സോളാർ കമ്പനികൾ / സോളാർ പവർ പ്ലാന്റുകളുണ്ട് എന്നാൽ ഇവരൊക്കെ സൂചിപ്പിക്കുന്ന ബക്കപ്പ് ടൈം ലഭിക്കുമോ എന്ന് വാങ്ങിക്കുന്നവർക്ക് കണക്കാക്കി തിട്ടപ്പെടുത്താവുന്നതാണ്.

ബാറ്ററികളുടെ കപ്പാസിറ്റിയാണ്  backup time  അടിസ്ഥാനപ്പെടുത്തുന്നത്, കപ്പാസിറ്റി പറയുന്നത്  Ampere Hour ( Ah) ലാണ്, കബളിക്കപ്പെടാൻ ചാൻസുള്ളതും ഇവിടെത്തന്നെ!
ബാറ്ററികളുടെ കപ്പാസിറ്റിക്കൊപ്പം  C”  റേറ്റിങ്ങും  അറിഞ്ഞാൽ  മാത്രമേ സൂചിപ്പിച്ച ബാക്ക് ടൈം കിട്ടുമോ എന്നുറപ്പിക്കാനാവൂ.

മാത്രമല്ല, ഒരേ ആവശ്യത്തിനു്,   125 Ah/ C10 ബാറ്ററി തരുന്ന ബാക്കപ്പ് ടൈമിനേക്കാൾ വളരെ കുറവ് ബാക്ക് അപ്പ് ടൈം മാത്രമേ  125Ah/ C20 തരികയുള്ളൂ,;  വിലയുടെ കാര്യമെടുത്താൽ, C10  റേറ്റിങ്ങുള്ളവക്ക്  C20 നെക്കാൾ വിലയും കൂടും!
മിക്കവരും ഈ  “C”  റേറ്റിങ്ങ് കാണിക്കാറില്ലെന്നതാണ് യാഥാർത്ഥ്യം.

സോളാർ പവർ പ്ലാന്റിനൊപ്പം നൽകുന്ന ബാറ്ററിയുടെ കപ്പാസിറ്റിയും /  റേറ്റിങ്ങും അറിഞ്ഞ്, അത് സൂചിപ്പിച്ച ബാക്ക് ടൈം തരുമോ എന്നുറപ്പ് വരുത്തുക,  അതുകണക്കുകൂട്ടാൻ സാധിക്കില്ലെങ്കിൽ സോളാർ കമ്പനിയോട് കണക്കുതരാൻ ആവശ്യപ്പെടുക അല്ലാത്ത പക്ഷം സൂചിപ്പിച്ച ബാക്കപ്പ് ടൈം ലഭിക്കാതെ നിങ്ങൾ വഞ്ചിക്കപ്പെട്ടേക്കാം!

സോളാർ എനർജിയെപറ്റിയോ, സോളാർ പവർ പ്ലാന്റിനെപറ്റിയോ സോളാർ വാട്ടർ ഹീറ്ററെപറ്റിയോ അറിയാനായി ബന്ധപ്പെടുക Aliyu Palathingal, http://www.Kaltechenergy.com

Sunday, November 25, 2012

സാറ്റലൈറ്റ് ഫൈന്റിങ്ങിനു എളുപ്പമാര്‍ഗം

സാറ്റലൈറ്റ്  ഫൈന്റിങ്ങിനു എളുപ്പമാര്‍ഗം


നിങ്ങളുടെ കൈവശം അണ്ടോയിദ് ഫോണ്‍ ഉണ്ടോ??????/ എങ്കില്‍ അതിലെ പ്ലേ സ്റ്റോറില്‍ പോയി സാറ്റലൈറ്റ്‌ ഫൈന്ടെര്‍ എന്നടിച്ചു സെര്‍ച്ച് ചെയ്തു നോക്കൂ........20 ലധികം ഫ്രീ ആപ്ലിക്കെഷനുകളാണ് നമ്മളെ സഹായിക്കാന്‍ അതിലൂടെ ഡൌണ്‍ലോഡ് ചെയ്യാവുന്നത് ..ചാനല്‍ ഫ്രീക്വന്‍സി അടിച്ചു കൊടുത്താല്‍ അതേതു ദിശയില്‍ ,സിഗ്നല്‍ സ്ട്രെങ്ങ്ത് എത്ര തുടങ്ങി ഡിഷ്‌ ട്രാക്കര്‍ക്ക് ആവശ്യമായ എലാവിവിവരങ്ങളും ഫോണിലൂടെ കണ്ടു മനസിലാക്കാം

നെതര്‍ലാന്‍ഡ്സിലെ സൈക്കിള്‍ പാതകള്‍

നെതര്‍ലാന്‍ഡ്സിലെ സൈക്കിള്‍ പാതകള്‍

രാജ്യത്തെ മുഴുവന്‍ ബന്ധിപ്പിക്കുന്ന സൈക്കിള്‍ പാതകളുടെ ശൃംഖല തന്നെ അവര്‍ അവിടെ നിര്‍മ്മിച്ചിട്ടുണ്ട്. രാജ്യം മുഴുവന്‍ ആ പാതയിലൂടെ മാത്രം സഞ്ചരിക്കാനാവും.



ഏറ്റവുമധികം  സൈക്കിളിനെ പ്രൊമോട്ട് ചെയ്യുന്ന ജഗദീഷിന്റെ ബ്ലോഗില്‍ നിന്നും

Saturday, November 24, 2012

ആന്‍ഡ്രോയിട് ഫോണുകള്‍ക്കുള്ള ഫ്രീ ആപ്ലിക്കേഷനുകള്‍

.......ആന്‍ഡ്രോയിട്  ഫോണുകള്‍ക്കുള്ള ഫ്രീ ...................ആപ്ലിക്കേഷനുകള്‍
പുതിയ പുതിയ ആന്ദ്രോയിട് ആപ്പുകള്‍ ദിനംപ്രതി പുറത്തിറങ്ങുന്നു അവയില്‍ നമുക്ക് പറ്റിയവ തിരയാന്‍ ഇതാ ഒരു സൈറ്റ്‌ ........

Top New Free Apps

ഇഷ്ടമുള്ള  ആപ്പുകള്‍ സൈറ്റില്‍ നോക്കി സെലക്റ്റ്‌ ചെയ്ത ശേഷം അവയെ നിങ്ങളുടെ ആന്‍ഡ്രോയിട്  ഫോണിന്റെ പ്ലേ സ്ടോറിലൂടെ ഡൌണ്‍ലോഡ്  ചെയ്യാം.........

മൊബൈല്‍ഫോണ്‍ ഉപയോഗിച്ച് റിമോട്ട് ടെസ്റ്റ്‌ ചെയ്യാം

മൊബൈല്‍ഫോണ്‍ ഉപയോഗിച്ച് റിമോട്ട്  .......................ടെസ്റ്റ്‌ ചെയ്യാം
നമ്മളുടെ ഗൃഹോപകരണങ്ങള്‍ ഇടയ്ക്കിടെ നിര്‍ദേശത്തെഅവയുടെ റിമോട്ട് കണ്ട്രോളറിന്റെ നിര്‍ദേശങ്ങള്‍ അനുസരിക്കാതെ വരാറുണ്ടല്ലോ.റിമോട്ടിന്റെ ബാറ്ററിയുടെ കുഴപ്പമോ അതോ മറ്റെന്തിങ്കിലും തകരാറോ എന്ന് എളുപ്പത്തില്‍ മനസിലാക്കാന്‍ ഇതാ ഒരു സിമ്പിള്‍ ടെക്നിക്‌.റിമോട്ടിന്റെ മുന്‍ഭാഗം നമ്മുടെ മൊബൈലിന്റെ ക്യാമറയുടെ നേരെ തിരിച്ചുപിടിച്ചു റിമോട്ടിന്റെ ബട്ടണുകള്‍ അമര്‍ത്തി നോക്കൂ .ക്യാമറാ മോഡില്‍ ഇട്ട നമ്മുടെ മൊബൈല്‍ ഡിസ്പ്ലേയില്‍ വയലറ്റ് നിറത്തില്‍ റിമോട്ട് ഇന്‍ഫ്രാറെഡ് LED പ്രകാശിക്കുന്നത് കാണുന്നുണ്ടോ ?ഉണ്ടെങ്കില്‍ റിമോട്ട് ഓക്കെ .....

Friday, November 23, 2012

കറന്റ് വേണ്ടാത്ത പെഡല്‍ പമ്പ്‌സെറ്റ്‌

കറന്റ് വേണ്ടാത്ത  പെഡല്‍ പമ്പ്‌സെറ്റ്‌

മോട്ടോര്‍വേണ്ട, പമ്പ്‌സെറ്റ്‌വേണ്ട. ഇനി ചെറുകിട കര്‍ഷകര്‍ക്ക് ഗുണകരമായി പെഡല്‍ പമ്പിങ് സംവിധാനം തുണയാകും. മോട്ടോറിന്റെയോ പമ്പ്‌സെറ്റിന്റെയോ സഹായമില്ലാതെ കൃഷിയിടങ്ങളില്‍ പെഡല്‍ പമ്പ്‌സെറ്റ്‌വഴി വെള്ളമെത്തിച്ച് നനയ്ക്കാവുന്ന സംവിധാനമാണ് വിജയകരമായി നടപ്പാക്കുന്നത്.

കേരള കാര്‍ഷിക സര്‍വകലാശാലയുടെ അമ്പലവയല്‍ കൃഷിവിജ്ഞാനകേന്ദ്രത്തിന്റെയും ഇന്റര്‍ നാഷണല്‍ ഡവലപ്പ്‌മെന്റ് എന്റര്‍പ്രൈസസിന്റെയും നേതൃത്വത്തിലാണ് പെഡല്‍ പമ്പിങ് സംവിധാനം നടപ്പാക്കിയത്. പുതിയ സംവിധാനം വഴിയുള്ള ജലസേചനം കര്‍ഷകര്‍ക്ക് ഏറേ പ്രതീക്ഷ നല്‍കുന്നതാണ്. മഴയില്ലാതെ വിഷമത്തിലായ കര്‍ഷകര്‍ക്ക് കുളങ്ങള്‍ ആഴംകുറഞ്ഞ കിണറുകള്‍, തോടുകള്‍ എന്നിവിടങ്ങളില്‍നിന്ന് ഈ പെഡല്‍പമ്പ് ഉപയോഗിച്ച് വെള്ളമെത്തിക്കാം. മിക്ക പാടശേഖരങ്ങളിലും വേനല്‍ക്കാലത്ത് വെള്ളമുണ്ടായിട്ടും മറ്റ് ജലസേചനമാര്‍ഗങ്ങള്‍ ഇല്ലാത്തതിനാല്‍ പച്ചക്കറികൃഷിപോലും നടക്കാറില്ല. പെഡല്‍പമ്പ് സംവിധാനം വരുന്നതോടെ ഇതിന് പരിഹാരമാകും. പെഡല്‍പമ്പ് ജലാശയത്തിനടുത്തുവെച്ച് കയറിനിന്ന് താഴേക്കും മുകളിലേക്കും ചവിട്ടുമ്പോള്‍ പിസ്റ്റന്‍ ചലിക്കുകയും ജലം മുകളിലെത്തിക്കുകയും ചെയ്യും.

25 അടി മുതല്‍ 30 അടി വരെ താഴ്ചയില്‍നിന്ന് കാല്‍കൊണ്ട് ചവിട്ടി വെള്ളം പമ്പ്‌ചെയ്യാവുന്ന രീതിയാണിത്. ആഴംകുറവുള്ള ജലാശയങ്ങളില്‍നിന്ന് പൈപ്പ് ഉപയോഗിച്ച് മുപ്പതുമീറ്റര്‍വരെ ദൂരത്തേക്ക് വെള്ളം കൊണ്ടുപോകാന്‍ കഴിയും. നെല്‍ക്കൃഷിയിലും വേനല്‍ക്കാലത്ത് പച്ചക്കറികൃഷിയിലും ഏര്‍പ്പെട്ട കുടുംബശ്രീകള്‍ക്കടക്കം ഈ പമ്പ്‌സെറ്റ് ഗുണകരമാകും.

വൈദ്യുതിയില്ലാത്ത സമയങ്ങളില്‍ വീട്ടാവശ്യത്തിനുള്ള വെള്ളവും ഇത്തരത്തില്‍ ലഭ്യമാക്കാം. ബയോഗ്യാസ് പ്ലാന്റില്‍നിന്ന് പുറത്തേക്കുവരുന്ന ജൈവകുഴമ്പുകള്‍, ജൈവകൃഷിക്കുള്ള ജൈവ കൂട്ടുകള്‍ എന്നിവയും കൃഷിയിടങ്ങളിലേക്ക് പമ്പ് ചെയ്യാന്‍ ഇത് ഉപയോഗിക്കാം. ഒന്നര ഇഞ്ച് പൈപ്പാണ് ഇതിന് ഉപയോഗിക്കുന്നത്. ഒരുസെക്കന്റില്‍ ഒന്നരലിറ്റര്‍ വെള്ളം പമ്പ്‌ചെയ്യാന്‍ കഴിയും. പെഡല്‍പമ്പ് ചവിട്ടി കുട്ടികള്‍ക്ക് മാതാപിതാക്കളെ കൃഷിയില്‍ സഹായിക്കാനും കഴിയും. രാവിലെ നടക്കാനിറങ്ങുന്നവര്‍ക്ക് നടത്തംനിര്‍ത്തി പെഡല്‍പമ്പ് ചവിട്ടിയാല്‍ ഒരു രൂപ ചെലവില്ലാതെ തോട്ടത്തിലേക്ക് ആവശ്യത്തിന് വെള്ളമെത്തിക്കാനും ആരോഗ്യപരിപാലനത്തിനും പെഡല്‍പമ്പ് പ്രയോജനപ്പെടുത്താം. ഒരു പമ്പിന് 3000 രൂപയാണ് ചെലവ് വരുന്നത്.

പാലക്കാട് ജില്ലയിലെ ആനക്കരസ്വദേശിയും വയനാട് കൃഷി വിജ്ഞാനകേന്ദ്രത്തിലെ അസിസ്റ്റന്റ് പ്രൊഫസറുമായ അബ്ദുള്‍ ജബ്ബാറാണ് വിവിധജില്ലകളില്‍ ഇത് വിജയകരമായി പരീക്ഷിച്ചത്. യുവാക്കളെ കൃഷിരംഗത്തേക്ക് ആകര്‍ഷിക്കാനായി രൂപപ്പെടുത്തിയ സണ്‍ഡേ ഫാമിങ് കൃഷിരീതി സംസ്ഥാനമാകെ വിജയകരമായി നടപ്പാക്കിക്കൊണ്ടിരിക്കുന്നതും ജബ്ബാറാണ്. പഞ്ചായത്തുകളിലെ വിവിധപദ്ധതികള്‍ വഴിയും കൃഷിഭവനുകള്‍ക്ക് ആത്മപദ്ധതികള്‍ വഴിയും പെഡല്‍പമ്പുകള്‍ ലഭ്യമാക്കും. കേരളത്തിലെ നെല്‍പ്പാടങ്ങളില്‍ വിളവിന്യാസം മാറ്റാന്‍ ഇത് ഗുണകരമാകും. കര്‍ഷകന് പരാശ്രയത്വം കുറയ്ക്കാനുതകുന്ന ഇത്തരത്തിലുള്ള പരമ്പരാഗത വിദ്യകള്‍ കൂടുതല്‍ പ്രചരിപ്പിക്കുമെന്നും ജബ്ബാര്‍ പറഞ്ഞു. വയനാട് വിജ്ഞാനകേന്ദ്രം മേധാവി ഡോ. രാധമ്മപിള്ള, കാര്‍ഷിക സര്‍വകലാശാല എക്സ്റ്റന്‍ഷന്‍ ഡയറക്ടര്‍ ഡോ. പി.വി. ബാലചന്ദ്രന്‍ എന്നിവര്‍ ജബ്ബാറിന് പിന്തുണ നല്‍കുന്നുണ്ട്.

അബ്ദുള്‍ ജബ്ബാര്‍: 9447228022.

Tuesday, November 20, 2012

ഫസ്സിലോജിക് ഒരാമുഖം fuzzy logic



ഫസ്സിലോജിക് ഒരാമുഖം fuzzy logic



വൈദ്യുതി കൊണ്ടു പ്രവര്‍ത്തിക്കുന്ന ഉപകരണങ്ങളെ പ്രധാനമായി രണ്ടായി തരം തിരിക്കാം , നിശ്ചിതമായ ഒരു പ്രവൃത്തി ചെയ്യുന്നതെന്നും ഒന്നില്‍ കൂടുതല്‍ പ്രവൃത്തികള്‍ ചെയ്യുന്നവയെന്നും.ഒറ്റ പ്രവൃത്തിമാത്രം ചെയ്യുന്ന ഉപകരണങ്ങളിലൂടെ വൈദ്യുതിപ്രവാഹമുണ്ടാകുമ്പോള്‍ അതിന്‍റ്റെ പ്രവൃത്തി തത്വമനുസരിച്ച്‌ വൈദ്യുതോര്‍ജ്ജത്തെ മറ്റൊരൂര്‍ജ്ജമാക്കി മാറ്റപ്പെടുന്നു.ഒരു സ്വിച്ചുകൊണ്ട്‌ ഉപകരണത്തിലേക്കുള്ള വൈദ്യുത പ്രവാഹത്തെ ആവശ്യമുള്ള സമയത്ത്‌ നിയന്ത്രിച്ചുകൊണ്ട്‌ ഈ ഉപകരണത്തിന്‍റ്റെ പ്രവൃത്തിയെ നിയന്ത്രിക്കുന്നു ഉദാഹരണം മോട്ടോറുകള്‍, ഫാനുകള്‍ , റ്റി.വി , ഡി.വി.ഡി പ്ളേയര്‍ എന്നിവ ഈ വിഭാഗത്തില്‍ പെടുന്നു.

പരസ്പരം ബന്ധമുള്ള വ്യത്യസ്ത പ്രവൃത്തികളെ പല ഭാഗങ്ങളാക്കിയുണ്ടാക്കുന്ന ഉപകരണങ്ങളാണ്‌ അടുത്ത തരം. ഒന്നില്‍കൂടുതല്‍ പ്രവൃത്തികളെ ഒരുമിച്ചൊരു ഉപകരണത്തില്‍ ഉള്‍ക്കൊള്ളിച്ചുണ്ടാകുമ്പോള്‍ ഓരോ വ്യത്യസ്ത പ്രവൃത്തിക്കും ഓരോ സ്വിച്ചുകള്‍ ഘടിപ്പിക്കണമെന്നതാണ്‌.ഒരു പ്രവൃത്തി കഴിയുമ്പോള്‍ , അടുത്ത പ്രവൃത്തി ചെയ്യുന്ന ഭാഗത്തേക്കു വൈദ്യുതിപ്രവാഹം ഉണ്ടാക്കി ആ ഭാഗത്തേയും പ്രവൃത്തിനിരതമാക്കുന്നു ,ഇവിടെ ശ്രദ്ധിക്കേണ്ട കാര്യം എപ്പോള്‍ ആദ്യത്തെ ഭാഗം തുടങ്ങണം , എപ്പോള്‍ നിര്‍ത്തണം , എപ്പോള്‍ രണ്ടാമത്തെ പ്രവൃത്തി തുടങ്ങണം എന്നതൊക്കെ തീരുമാനിക്കുന്നത്‌ ഉപയോഗിക്കുന്ന നമ്മളാണെന്നതാണ്‌ , അതായത്‌ മേല്‍ പറഞ്ഞ സ്വിച്ചുകളെ നിയന്ത്രിക്കുന്നത്‌ നമ്മുടെ തലയാണെന്നു ചുരുക്കം.ഉദാഹരണം മുഴു- ഓട്ടോമാറ്റിക്‌ (fully automatic) അല്ലാത്ത വാഷിങ്ങ്‌ മഷിന്‍. ആദ്യത്തെ സ്വിച്ച്‌ ഓണാക്കി അലക്കല്‍ കഴിഞ്ഞതിനുശേഷം , രണ്ടാമത്തെ സ്വിച്ചോണാക്കി രണ്ടാമത്തെ പ്രവൃത്തിയായ ഉണക്കല്‍ ചെയ്യുന്നു , ഇവിടെ അലക്കല്‍ തുടങ്ങുന്നതും , നിര്‍ത്തുന്നതും, ഉണക്കല്‍ തുടങ്ങുന്നതും നിര്‍ത്തുന്നതും എല്ലാം തീരുമാനിക്കുന്നതു നമ്മള്‍ ആണ്‌ , നമ്മള്‍ പലസ്വിച്ചുകളും പ്രവൃത്തിപ്പിച്ച്‌ നമ്മുടെ ആവശ്യങ്ങള്‍ നിറവേറ്റുന്നു.ഇനി ഈ ഉപകരണത്തെ എങ്ങിനെ പൂര്‍ണ്ണമായും സ്വന്തമായി പ്രവര്‍ത്തനമാക്കാമെന്നു നോക്കാം.


അലക്കലിനെടുക്കുന്ന സമയം കഴിഞ്ഞ ഉടന്‍ അലക്കല്‍ ഭാഗത്തേക്കുള്ള വൈദ്യുത പ്രവാഹം നിര്‍ത്തി , ഉണക്കല്‍ ഭാഗത്തേക്കുള്ള പ്രവാഹം തുടങ്ങിയാല്‍ , രണ്ടു പ്രവൃത്തിയും നമ്മുടെ സഹായമില്ലാതെ നടക്കുമല്ലോ , അപ്പോള്‍ എന്തൊക്കെ വേണം , ഒരു റ്റൈമര്‍ ( ഇത്ര സമയം ആയി എന്നറിയിക്കാനുള്ള ഉപകരണം).അങ്ങിനെ ഒന്നില്‍ കൂടുതല്‍ പ്രവൃത്തി സ്വയം ചെയ്യുന്ന ആടോമാറ്റിക്‌ വാഷിങ്ങ്‌ മെഷിന്‍ ഒരു ഒറ്റ സ്വിച്ച്‌ കൊണ്ടുമാത്രം പ്രവര്‍ത്തിക്കുന്നു , ഒരു പ്രവൃത്തിയില്‍ നിന്നും മറ്റേ പ്രവൃത്തിയിലേക്ക്‌ സ്വയം നീങ്ങുന്നു. നമ്മള്‍ വാഷിങ്ങ്‌ മെഷിന്‍ ഓണാക്കുമ്പോള്‍ ഒരു റ്റൈമറും ഓണ്‍ ആകുന്നു , നിശ്ചിത സമയം കഴിഞ്ഞാല്‍ വാഷിങ്ങിനോടു ബന്ധപ്പെട്ട ഭാഗത്തേക്കുള്ള സ്വിച്ച്‌ ഓഫ്‌ ആകുകയും , ഉണക്കല്‍ പ്രവൃത്തി ചെയ്യുന്ന ഭാഗത്തേക്കുള്ള സ്വിച്ച്‌ ഓണ്‍ ആകുകയും ചെയ്യുന്നു.


ചുരുക്കിപ്പറഞ്ഞാല്‍ ഉപകരണങ്ങളുടെ പ്രവൃത്തികളെ നിയന്ത്രിക്കാന്‍ കുറെ സ്വിച്ചുകളും റ്റൈമറുകളും മാത്രം മതിയെന്നര്‍ത്ഥം. കുറെ പ്രവൃത്തികള്‍ ചെയ്യുന്ന ഒരു ഉപകരണത്തെ ഒന്നില്‍ നിന്നും മറ്റൊരു പ്രവൃത്തിയിലേക്ക്‌ മാറ്റം ചെയ്യണാമെങ്കില്‍ , അതിലേ ഓരോ വ്യത്യസ്ത പ്രവൃത്തികള്‍ ചെയ്യുന്ന ഭാഗങ്ങളുടെയും നിജ സ്ഥിതി അറിയണമെന്നുണ്ടല്ലോ , അതായത്‌ വാഷിങ്ങ്‌ നടക്കുമ്പോള്‍ , ഉണക്കലും ഒരിക്കലും ഒരു നടക്കാന്‍ പാടില്ലല്ലോ , അപ്പോള്‍ എന്തു വേണം, വാഷിങ്ങ്‌ ചെയ്യുന്ന ഭാഗം പ്രവൃത്തിക്കുന്നുണ്ടോ എന്നുറപ്പു വരുത്തണം , ഉണ്ടെങ്കില്‍ അതോഫ്‌ ആക്കിയിട്ടേ ഉണക്കല്‍ പ്രവൃത്തി തുടങ്ങാന്‍ പാടുള്ളു.


മനുഷ്യന്‍ കേള്‍വികൊണ്ട്‌ ( അല്ലെങ്കില്‍ കണ്ണുകൊണ്ട്‌) അതു മനസ്സിലാക്കുന്നു എന്നാല്‍ , ഈ ഉപകരണത്തിനതുമനസ്സിലാവണമെങ്കില്‍ അലക്കല്‍ ഭാഗത്തേക്ക്‌ വൈദ്യുത പ്രവാഹമുണ്ടോ / ഇല്ലയോ എന്നു മനസ്സിലാക്കുക എന്ന ഒറ്റ മാര്‍ഗ്ഗമേയുള്ളു.പ്രവാഹം ഉണ്ടോ ഇല്ലയോ എന്നറിയാനുള്ള ഉപകരണങ്ങള്‍ സ്ഥാപിക്കുക വഴി ഇതും സാധ്യമാകുന്നു.പ്രവാഹമുണ്ടെങ്കില്‍ അതു നിര്‍ത്തിയതിനു ശേഷം ഉണക്കല്‍ പ്രവൃത്തി തുടങ്ങുന്നു.ഇത്തരത്തില്‍ രണ്ടു തലങ്ങള്‍ (ഉണ്ട്‌ / ഇല്ല), അല്ലെങ്കില്‍ (വേണം / വേണ്ട ) അടിസ്ഥാനമാക്കിയുള്ള സാങ്കേതികതയെ 'ഡിജിറ്റല്‍' സാങ്കേതിക വിദ്യ എന്നറിയപ്പെടുന്നു. ഇവയെ ബൈ ലോജിക് വിദ്യ എന്നും വിളിക്കാറുണ്‍ട്.


ഉണ്ട്‌ / ഇല്ല എന്ന രണ്ട്‌ കാര്യങ്ങള്‍ ഉപയോഗിച്ച്‌ പല പ്രവൃത്തികളേയും സ്വയം നിയന്ത്രിക്കാന്‍ മനുഷ്യന്‍ പ്രാപ്തനായെങ്കിലും ,ഉപകരണങ്ങളെ കൂടുതല്‍ വിവേചനതക്ഷംഅറ്ഋഅയുള്ളതക്കണമെങ്കില്‍ മനുഷ്യനെപ്പോലെ ,തീരെയില്ല , കുറച്ചുണ്ട്‌ , അത്യാവശ്യമുണ്ട്‌ , സഹിക്കുന്നില്ല എന്നൊക്കെയുള്ള ഭാഷാ ശകലങ്ങളെ മേല്‍പറഞ്ഞ രണ്ട്‌ തലങ്ങളുടെയൊപ്പം ഉള്‍പ്പെടുത്തണമെന്ന ചിന്തയാണ്‌ മറ്റൊരു വിദ്യയായ ഫസി ലോജിക്‌ എന്നു വിളിക്കുന്ന വിദ്യയിലേക്കു നയിച്ചത്‌.


ഒരേ ഉപകരണം ഡിജിറ്റല്‍ ലോജിക്കിലും , ഫസി ലോജിക്കിലും പ്രവര്‍ത്തിക്കുമ്പോളുള്ള വ്യത്യാസം എത്രവലുതെന്നത് ഒരുദഹരണത്തോടെ വിശദമാക്കാം.ഉദാഹരണമായി എയര്‍ കണ്ടീഷന്‍ ചെയ്ത ഒരുമുറിയെടുക്കാം.


എയര്‍ കണ്ടീഷന്‍ ചെയ്ത ഒരു മുറിയില്‍ ' തെര്‍മോസ്റ്റാറ്റ്‌ ' ആണ്‌ എ.സി യുടെ പ്രവര്‍ത്തിയെ നിയന്ത്രിക്കുന്നത്‌. തെര്‍മോസ്റ്റാറ്റില്‍ സെറ്റ് ചെയ്ത നിശ്ചിത താപനിലയിലേക്കു താഴുന്നതുവരെ എ.സി യെ തെര്‍മോ സ്റ്റാറ്റ്‌ പ്രവര്‍ത്തിപ്പിക്കുന്നു , തെര്‍മോസ്റ്റാറ്റ് ഇവിടെ ഒരു സ്വിച്ച് ആയി പ്രവര്‍ത്തിക്കുന്നു. സെറ്റ് ചെയ്ത താപനില മുറിയിലായാല്‍ ഉടന്‍ തെര്‍മോസ്റ്റാറ്റ് എ.സി.യിലേക്കുള്ള വൈദ്യുതിയുടെ പ്രവാഹം നിര്‍ത്തുകയും എ.സിയെ ഓഫ് ആക്കുകയും‌ ചെയ്യുന്നു.


എ.സി ഓഫായാല്‍ സവധാനം മുറിയിലെ താപനില ഉയരുമല്ലോ , സെറ്റ് ചെയ്ത താപനില(ഉദാഹരണം : 25 ഡിഗ്രി) യുടെ മുകളിലായാല്‍ ഉടന്‍ എ.സി യിലേക്കുള്ള വൈദ്യുത പ്രവാഹം തെര്‍മോസ്റ്റാറ്റ് പുനരാവിഷ്കരിക്കുകയും എ.സി യുടെ പ്രവര്‍ത്തനം തുടങ്ങുകയും, മുറി തണുക്കാന്‍ തുടങ്ങുകയും‌ ചെയ്യുന്നു. ഇവിടെ തെര്‍മോസ്റ്റാറ്റ് ഒരു ബൈ ലോജിക് സ്വിച്ചായി പ്രവര്‍ത്തിക്കുന്നു.അതായത് മുറിയിലെ താപം ഇരുപത്തഞ്ച് ഡിഗ്രിയില്‍ കൂടുമ്പോള്‍ എ.സി പ്രവര്‍ത്തിക്കുന്നു , ഇരുപത്തഞ്ച് ഡിഗ്രി ആകുമ്പോള്‍ എ.സി പ്രവര്‍ത്തനം നില്‍ക്കുകയും ചെയ്യുന്നു.


ബൈ ലോജിക്കായ ഇതിന്‍‌റ്റെ പരിമിതികള്‍ നോക്കാം:


തെര്‍മോസ്റ്റാറ്റില്‍ ഇരുപത്തഞ്ച്‌ ഡിഗ്രി താപം സെറ്റ്‌ ചെയ്തതിനാല്‍ എപ്പോള്‍ തെര്‍മോസ്റ്റാറ്റില്‍ ഇരുപത്തഞ്ചിനു മുകളില്‍ താപം കിട്ടുന്നുവോ അപ്പോള്‍ എ.സി ഓണാകുകയും അതിനു താഴെ പോകുമ്പോള്‍ ഓഫ്‌ ആകുകയും ചെയ്യുമെന്ന്‌ മനസ്സിലായല്ലോ. എന്നാല്‍ ഇങ്ങനെ എ.സി. ഓഫായ സമയത്ത് മുറിയുടെ പലഭാഗങ്ങളില്‍ താപം അളക്കുകയാണെങ്കില്‍ ,പലയിടത്തും പല അളവായിരിക്കും ലഭിക്കുക എന്നതാണ്‌ സത്യം.


അതായത് എ.സി ക്കടുത്ത് ഇരുപത്തഞ്ചില്‍ വളരെ കുറവും , എസിയുമായി അകല്‍ം കൂടും തോറും താപനില കൂടുതലുമായിരിക്കും , ഇരുപത്തഞ്ച് ഡിഗ്രി ലഭിക്കുക തെര്‍മോസ്റ്റാറ്റിനടുത്ത് മാത്രമായിരിക്കുംഒരു ചെറിയ വ്യത്യാസം തെര്‍മോസ്റ്റാറ്റിനടുത്തുണ്ടാകുമ്പോള്‍ ( ഇരുപത്തിനാല്‌ ഡിഗ്രി) എ.സി പൂര്‍ണ്ണ ശക്തിയോടെ ഓണ്‍ ആകുകയും ഇരുപത്തഞ്ചാകുമ്പോള്‍ ഓഫ്‌ ആകുകയും ചെയ്യുന്നു.ഒര്‍ക്കുക എ.സിയുടെ തൊട്ടടുത്ത്‌ ഇരുപത്തഞ്ച്‌ ഡിഗ്രിയില്‍ കുറവായിരിക്കും അപ്പോളും താപനില , ഈ കാരണങ്ങള്‍ കൊണ്ടുതന്നെയാണ്‌ , തെര്‍മോസ്റ്റാില്‍ ഇരുപത്തഞ്ച്‌ ഡിഗ്രിയില്‍ സെറ്റ്‌ ചെയ്ത്‌ ഉറങ്ങിയ നമ്മള്‍ രാത്രിയില്‍ അധിക തണുപ്പനുഭവപ്പെട്ട്‌ സ്വിച്ച്‌ നമ്മുടെ കൈകൊണ്ട്‌ ഓഫാക്കേണ്ടിവരുന്നതും.


ഈ അവസ്ഥയെ മറികടക്കാന്‍ വേണ്ടിയാണ്‌ "ഡിലേ" മാര്‍ഗ്ഗം സ്വീകരിക്കാന്‍ തുടങ്ങിയത്‌ , അതായത്‌ നമ്മള്‍ സെറ്റ്‌ ചെയ്ത താപം തെര്‍മോസ്റ്റാറ്റില്‍ കണ്ടാലും ഉടനെ എ.സി ഓണ്‍ ആക്കാതെ കുറച്ചു സമയം കാത്തുനിന്നതിനു ശേഷം എ.സി ഓണ്‍ ആക്കുന്ന മാര്‍ഗ്ഗം.


ഈ മാര്‍ഗ്ഗത്തിനുള്ളാ കുഴപ്പം ,ചില ഭാഗങ്ങളില്‍ പ്രത്യേകിച്ചും എ.സിയില്‍നിന്നും ദൂരെ വളരെ ഉഷ്ണം അനുഭവപ്പെട്ടതിനു ശേഷമായിരിക്കും എ.സി.ഓണ്‍ ആകുക എന്നതാണ്‌.മാത്രമല്ല തെര്‍മോസ്റ്റാറ്റില്‍ നിന്നും കൂടുതല്‍ അകലത്തില്‍ ഒന്നുകില്‍ തണുപ്പ്‌ കൂടുതലായിരിക്കും , അല്ലെങ്കില്‍ ചൂട്‌ കൂടുതലായിരിക്കും എന്നതാണ്‌ ( എ.സിയുടെ അടുത്ത് തണുപ്പും , അകലത്തില്‍‌ ചുടും )ചുരുക്കത്തില്‍ മേല്‍ പറഞ്ഞ ബൈ ലോജിക് അടിസ്ഥാനമാക്കിയുള്ള രീതിയില്‍ പ്രവര്‍ത്തിക്കുന്ന എ.സി യുടെ comfort level വളരെ കുറവായിരിക്കുമെന്നു മനസ്സിലായല്ലോ.


ഇനി ഇതേ കാര്യം ഫസിലോജിക് ഉപയോഗിച്ചുപ്രവര്‍ത്തിക്കുമ്പോള്‍ എന്തു സംഭവിക്കുമെന്നു നോക്കാം.ബൈ ലോജിക്കിലെ രണ്ട് തലങ്ങളായ , ഉണ്ട് / ഇല്ല എന്നിവക്കു പകരമായി ഇവിടെ ഉപയോഗിക്കുന്നത് ,ഭയങ്കര ചൂട് , മിതമായ ചൂട് , മിതമായ തണുപ്പ് , ഭയങ്കര തണുപ്പ് എന്നീ നാല് തലങ്ങള്‍ ഉള്‍പ്പെടുത്തിയാണ് താപത്തെ നിയന്ത്രിക്കുന്നത്. എ.സി.യുടെ പ്രവര്‍ത്തന വേഗം നാലായി വിഭജിച്ചതിനു ശേഷം , താപ നില അളക്കുന്നു.ഭയങ്കര ചൂടാണളന്നതെങ്കില്‍ എ.സി അതിവേഗത്തോടെ പ്രവര്‍ത്തനം തുടങ്ങുന്നു.മിതമായ ചൂട് ആവുന്നതോടെ എ.സിയുടെ വേഗത കുറയുകയും‌ മിതമായ തണുപ്പാവുന്നതോടെ ഏറ്റവും കുറഞ്ഞ വേഗത്തില്‍ എ.സി പ്രവര്‍ത്തനം തുടരുകയും ഭയങ്കര തണുപ്പാവുന്നതോടെ എ.സി യുടെ പ്രവര്‍ത്തനം നില്‍ക്കുകയും ചെയ്യുന്നു , അതായത് , ബൈ ലോജിക്കിനെ അപേക്ഷിച്ച് ഫസി ലോജിക്കിന്‍‌റ്റെ comfort level വളരെ കൂടുതലാണെന്നു മനസ്സിലയല്ലോ.

എഴുതിയത്

Aliyu Palathingal

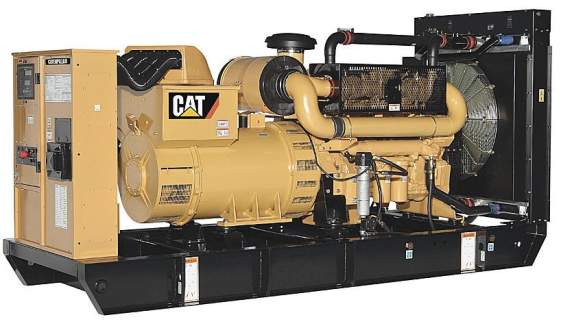

എമര്‍‌ജെന്‍സി പവര്‍ ജനറേറ്റര്‍ ചില തെറ്റായ ധാരണകള്‍

എമര്‍‌ജെന്‍സി പവര്‍ ജനറേറ്റര്‍ ചില തെറ്റായ ധാരണകള്‍


മുമ്പ് ചിലപ്പോഴൊക്കെ ശ്രദ്ധയില്‍ പെട്ടിട്ടുണ്ടെങ്കിലും ഈയിടെയാണ് നല്ലൊരു കൂട്ടം ആളുകളും തെറ്റായി ധരിച്ചിരിക്കുന്ന പ്രധാനപ്പെട്ടവയില്‍ ഒന്നാണ് Standby Generator. Building Electrical Service നെപ്പറ്റി യു.എ.ഇ യിലെ പല പ്രശസ്ഥരായ Consultants റ്റെയും Specification നോക്കിയാല്‍ മനസ്സിലാകുന്ന കാര്യം എല്ലാം ഒന്നുതന്നെ ശംഭോ എന്നാണ്‌.അതായത് ആരോ എന്നോ ഉണ്ടാക്കിയ ഒരു Specification കോപ്പിയടിച്ചതാണ് പല Consultants ഉം ഉപയോഗിക്കുന്നതെന്ന് ചുരുക്കം.അപൂര്‍‌വ്വം ചിലര്‍ Specification ന്‍‌റ്റെ ഭാഗങ്ങളില്‍ ചില പൊടിക്കൈകള്‍ നടത്താറുണ്ടെന്നത് മറക്കുന്നില്ല.


കെട്ടിടങ്ങളില്‍ എന്തിനാണ് Standby Generator എന്നാരോടെങ്കിലും ചോദിച്ചാല്‍ ഉത്തരം മിക്കവാറും ലഭിക്കുക,


' Main power supply failure സമയത്ത് ഉപയോഗിക്കാന്‍ ' എന്നാകും.


മറ്റു ചിലരാകട്ടെ ഇതും കൂടെ കൂട്ടും,


' Main power supply failure സമയത്ത് എമര്‍‌ജന്‍സി ലറ്റുകള്‍ കത്തിക്കാന്‍ ' എന്നുമാകും പറയുക.


ഈ ഉത്തരങ്ങള്‍‌ക്ക് ശരിയുടെ പത്തുശതമാനം പോലുമാവുന്നില്ലെന്ന് മാത്രമല്ല പ്രധാന ആവശ്യം ഇതൊന്നുമല്ലെന്നതാണ്‌. അതിനായി Main power supply ഉള്ളപ്പോള്‍ ഉപയോഗിക്കേണ്ടിവരില്ലേ എന്ന് തിരിച്ചു ചോദിച്ചാല്‍ പലരും തല ചൊറിയും.


' Fire പോലുള്ള Emergency Condition നില്‍ Essential Power ലഭ്യമാക്കാനാണ്‌ Standby Generator ' കെട്ടിടങ്ങളില്‍ ഉള്‍‌പ്പെടുത്തുന്നത്.


Essential Power എന്നത് കെട്ടിടത്തിലുള്ള എല്ലാ Life and Safety ഉപകരണങ്ങള്‍ക്കും നിര്‍‌‍‌ബന്ധമായും ലഭ്യമാകേണ്ട പവറാണ്; Fire Alarm , Fire Pumps, Emergency Lights ,Smoke Extraction System , Fire Man Elevator തുടങ്ങി പലതും അതില്‍ ഉള്‍പ്പെടും. മാത്രമല്ല ഇതില്‍‌ മറ്റുള്ള എന്തെങ്കിലും ഉപകരണള്‍ ഉള്‍‌പ്പെടുത്താവുന്നതും ആണ്.


ഒരു നല്ല കെട്ടിടത്തില്‍ Fire Alarm System Activated ആയാല്‍ Main Power Supply കട്ടാക്കുയാണാദ്യം ചെയ്യുക. ഇലക്ട്രിക് റൂമിലോ , കാണാവുന്ന സ്ഥലത്തോ സ്ഥാപിച്ചിട്ടുള്ള സ്വിച്ചുകള്‍ ഉപയോഗിച്ചോ , B.M.S വഴിയോ Main Circuit Breaker ഓഫാക്കുന്നു, തുടര്‍ന്നാണ് Standby Generator പ്രവര്‍ത്തിക്കാന്‍ തുടങ്ങുക .ഇവിടെ ശ്രദ്ധിക്കേണ്ട കാര്യം Main Power Supply ഈ സമയത്തും ബില്‍‌ഡിങ്ങിനടുത്ത് ഉണ്ടെന്നും നിര്‍‌ബന്ധപൂര്‍‌വ്വം ഓഫാക്കിയിരിക്കയാണെന്നുമാണ്.


ഇതിനൊപ്പം ചേര്‍ക്കാവുന്ന മറ്റൊരുകാര്യവുമുണ്ട് , Value Engineering എന്നാല്‍ Specification നില്‍ വെള്ളം ചേര്‍ത്ത് Dilute ചെയ്ത് Client ന് കുറച്ച് പണം ലാഭിച്ച് സുഖിപ്പിക്കുന്ന പരിപാടിയെന്നാണ് പലരുടേയും ചിന്ത. അതുകൊണ്ടാണല്ലോ Fire Rated Cabiles മാത്രം ഉപയോഗിക്കാന്‍ പാടുള്ളയിടങ്ങളില്‍ ( ഉദാഹരണം : Essential Power , Standby Generator Power ) പോലും കാര്യങ്ങള്‍ കൃത്യമായി മനസ്സിലാക്കാതെ സാധാരണ കേബിളുകള്‍ ഉപയോഗിക്കാമെന്നും പറഞ്ഞ് കുറച്ചുപണം ക്ലയന്‍‌റ്റിന് ലാഭമുണ്ടാക്കിക്കൊടുക്കുന്നത്!. അറിവില്ലായ്മകൊണ്ടായാല്‍ പോലും ഇവര്‍ ചെയ്യുന്നതിന്‍‌റ്റെ ഗൗരവം കാലങ്ങളായി Consultant ആയും മറ്റും ജോലി ചചെയ്യുന്നവര്‍ പോലും മനസ്സിലാക്കുന്നില്ല എന്നതാണ് ദുഖകരം.


Specification നില്‍ വെള്ളം ചേര്‍ത്തല്ല Value Engineering ചെയ്യേണ്ടതെന്ന് മനസ്സിലാക്കുന്നതോടെ Standby Generator ഇല്‍ നിന്നും ലഭിക്കുന്ന പവര്‍ Life and Safety equipment നു വേണ്ടിയുള്ള Essential Power ആണെന്നും അതുകൊണ്ട് തന്നെ ഈ പവര്‍ ഫീഡ് ചെയ്യാന്‍ Fire rated cables മാത്രമേ ഉപയോഗിക്കാന്‍ പാടുള്ളു എന്നും അതിന്‍‌റ്റെ ഉപയോഗം കൃത്യമായും മനസ്സിലാക്കുമെന്നും ആശ്വസിക്കാം. അല്ലാത്ത പക്ഷം Authority കള്‍ ഇതിനെപ്പറ്റി പിന്നീട് ബോധ്യപ്പെടുന്ന അവസ്ഥവന്നാല്‍ പല കെട്ടിടങ്ങളും പൊളിക്കുന്നതും കാണേണ്ടിവരും.

എഴുതിയത് Aliyu Palathingal

Monday, November 19, 2012

PCBഎച്ചിങ്ങിനു പുതിയ രീതി


  PCBഎച്ചിങ്ങിനു  പുതിയ രീതി

I learned a new method to etch home-made PCB's. In this method, the PCB is not soaked in etching fluid, instead the copper is removed by rubbing with a sponge. The good things about this method are, you need only very small amounts of etching fluid, and the fluid does not need to be heated.


PCBഎച്ചിങ്ങിനു ഒരു പുതിയ രീതി ആവിഷ്കരിക്കപ്പെട്ടിരിക്കുന്നു ഈ രീതിയിലൂടെ വളരെ കുറഞ്ഞ അളവില്‍ ഫെറിക് ക്ലോറൈഡ് ഉപയോഗിച്ച് PCB കള്‍ തയാറാക്കാം




I am preparing my own etching-fluid. To do this, 80 grams of Fe3Cl powder are added to 120 grams of water, so I have a 40% ferric chloride solution at the end. I made experiments with low concentration ( 15-20% ) solutions, and I saw that the process takes too long time, so I am using a min 40% solution. I keep the prepared solution in a plastic (PE) bottle. This bottle will last me a long time because this process needs very little amount of fluid.
 spongesponge


Here are the equipments I use; gloves, a glass bowl, and a small piece of sponge.
sponge


I am pouring little amount of etching-fluid to my sponge, and I rub with it the board surface. If the copper area is large, the fluid color will turn to black in very short time, if so ,refresh the fluid and continue rubbing.
spongesponge


The middle of the board is etched in a one or two minutes, but for the edges you have to rub with sponge for a long time.
sponge


Below you can see the fully etched board.
sponge


– It is economical, and less waste is out
– It is a very short process for small circuits
– You don't need to heat the etching-fluid
Positive aspects of this method are:
Negative aspects:
– Etching large and double-sided circuit boards will take very long time
– Rubbing hard with sponge also removes drawings made with water resist pens.

Finally, my advice is, minimize the copper surface area. Very large copper surface causes saturation of the etching-fluid quickly, and you need to refresh the fluid again and again.

Tuesday, November 13, 2012

വീക്കായ സോളാര്‍ പാനലുകള്‍ റിപ്പയര്‍ ചെയ്യാം

വീക്കായ സോളാര്‍ പാനലുകള്‍ റിപ്പയര്‍ ചെയ്യാം




We will be introducing a number of kits for those who have opted to live with 12v energy. With nearly everything electronic capable of operating from a 12v supply, there is no reason why anyone opting to live with a low voltage supply cannot enjoy all the electronic pleasures of those who live in the city.
Some products are not yet available for 12v operation but inverters are available from 100watts to 4kw.
The aim of this project is to cater for the other end of the range. We are looking at charging a 12v battery, using the cheapest set of solar cells and the cheapest inverter. This also means the cheapest 12v battery -  a 1amphr (1AHr) gell cell or 6v cells salvaged from old analogue mobiles!
സോളാര്‍ പാനലിന്റെ തകരാറുകള്‍,അവ എങ്ങിനെ പരിഹരിക്കാം
The problem with charging a battery from a solar panel is the SUN!  It doesn't shine all the time and clouds get in the way! Our eyes adjust to the variations in the strength of the sun but a solar panel behaves differently.
As soon as the sun loses its intensity, the output from a solar panel drops enormously. No only does the output current fall, but the output voltage also decreases.
Many of the solar panels drop to below the 13.6v needed to charge a 12v battery and as soon as this occurs, the charging current drops to ZERO. This means they become useless as soon as the brightness of the sun goes away.
Our project cannot work miracles but it will convert voltages as low as 3.5v into 13.6v and keep delivering a current to the battery. Obviously the current will be much lower than the maximum, when the sun "half-shines" but the inverter will take advantage of all those hours of half-sun.
At least you know it will be doing its best ALL THE TIME.
The other advantage of the inverter is the cost of the panel. You don't have to buy a 12v panel. Almost any panel or set of solar cells will be suitable. You can even use a faulty 12v panel. Sometimes a 12v panel becomes damaged or cracked due to sun, rail, heat or shock. If one or two of the cells do not output a voltage (see below on how to fix faulty panels) the cells can be removed (or unwired) and the gap closed up. This will lower the output voltage (in fact it may increase the voltage  -  the faulty cells may have reduced the output to zero) but the inverter will automatically adjust.
The aim of this project is to achieve a 13.6v supply at the lowest cost. That's why the project has been released as a kit. The equivalent in made-up form is 3 times more expensive yet doesn't have some of the features we have incorporated in our kit. We have used a more efficient output circuit than the closest rival design and the driver transistor is the latest "low-voltage" type. These two factors increased the efficiency by 20% over the rival.

ഈ സര്‍ക്യൂട്ട് എങ്ങനെ പ്രവര്‍ത്തിക്കുന്നു
The circuit is a single transistor oscillator called a feedback oscillator, or more accurately  a BLOCKING OSCILLATOR. It has 45 turns on the primary and 15 turns on the feedback winding. There is no secondary as the primary produces a high voltage during part of the cycle and this voltage is delivered to the output via a high-speed diode to produce the output. The output voltage consists of high voltage spikes and should not be measured without a load connected to the output. In our case, the load is the battery being charged. The spikes feed into the battery and our prototype delivered 30mA as a starting current and as the battery voltage increased, the charging current dropped to 22mA.
The transistor is turned on via the 1 ohm base resistor. This causes current to flow in the primary winding and produce magnetic flux. This flux cuts the turns of the feedback winding and produces a voltage in the winding that turns the transistor ON more. This continues until the transistor is fully turned ON and at this point, the magnetic flux in the core of the transformer is a maximum. But is is not EXPANDING FLUX. It is STATIONARY FLUX  and does not produce a voltage in the feedback winding. Thus the "turn-on" voltage from the feedback winding disappears and the transistor turns off slightly (it has the "turn-on effect of the 1 ohm resistor).
The magnetic flux in the core of the transformer begins to collapse and this produces a voltage in the feedback winding that is opposite to the previous voltage. This has the effect of working against the 1 ohm resistor and turns off the transistor even more.
The transistor continues to turn off until it is fully turned off. At this point the 1 ohm resistor on the base turns the transistor on and the cycle begins.
At the same time, another amazing thing occurs.
The collapsing magnetic flux is producing a voltage in the primary winding. Because the transistor is being turned off during this time, we can consider it to be removed from the circuit and the winding is connected to a high-speed diode. The energy produced by the winding is passed through the diode and appears on the output as a high voltage spike. This high voltage spike also carries current and thus it represents ENERGY. This energy is fed into the load and in our case the load is a battery being charged.
The clever part of the circuit is the high voltage produced. When a magnetic circuit collapses (the primary winding is wound on a ferrite rod and this is called a magnetic circuit), the voltage produced in the winding depends on the QUALITY of the magnetic circuit and the speed at which it collapses. The voltage can be 5, 10 or even 100 times higher than the applied voltage and this is why we have used it.
This is just one of the phenomenon's of a magnetic circuit. The collapsing magnetic flux produces a voltage in each turn of the winding and the actual voltage depends on how much flux is present and the speed of the collapse.
The only other two components are the electrolytics.
The 100u across the solar panel is designed to reduce the impedance of the panel so that the circuit can work as hard as possible.
The circuit is classified as very low impedance. The low impedance comes from the fact the primary of the transformer is connected directly across the input during part of the cycle.
The resistance of the primary is only a fraction of an ohm and its impedance is only a few ohms as proven by the knowledge that it draws 150mA @ 3.2v. If a battery is connected to the circuit, the current is considerably higher. The 150mA is due to the limitation of the solar panel.
Ok, so the circuit is low-impedance, what does the 100u across the panel do?
The circuit requires a very high current for part of the cycle. If the average current is 150mA, the instantaneous current could be as 300mA or more. The panel is not capable of delivering this current and so we have a storage device called an electrolytic to deliver the peaks of current.
The 10u works in a similar manner. When the feedback winding is delivering its peak of current, the voltage (and current) will flow out both ends of the winding. To prevent it flowing out the end near the 1R resistor, an electrolytic is placed at the end of the winding. The current will now only flow out the end connected to the base of the transistor. It tries to flow out the other end but in doing so it has to charge the electrolytic and this take a long period of time.
These two components improve the efficiency of the circuit considerably.
You will notice the battery is receiving its charging voltage from the transformer PLUS the 3.2v from the solar panel. If the battery voltage is 12.8v (the voltage during charging) the energy from the transformer will be equivalent to 9.6v/12.8v and the energy from the solar cell will be equivalent to 3.2v/12.8v. In other words the energy into the battery will be delivered according to the voltage of each source.
THE BLOCKING OSCILLATOR
The operation of the circuit has been covered above but the term BLOCKING OSCILLATOR needs more discussion. By simply looking at the circuit you cannot tell if the oscillator is operating as a sinewave or if it is turning on and off very quickly.
If the circuit operated as a sinewave, it would not produce a high-voltage spike and a secondary winding would be needed, having an appropriate number of turns for the required voltage.
A sinewave design has advantages. It does not produce RF interference and the output is determined by the number of turns on the secondary.
The disadvantage of a sinewave design is the extra winding and the extra losses in the driving transistor, since it is turned on and off fairly slowly, and thus it gets considerably hotter than a blocking oscillator design.
The factor that indicates the circuit is a blocking oscillator is the absence of a timing capacitor. The circuit gets its timing from the inductance of the transformer. It takes time for the current to start to flow in an inductive circuit, once the voltage has been applied. In technical terms CURRENT LAGS IN AN INDUCTIVE CIRCUIT.
The timing feature is hidden in the circuit, but it has nothing to do with the feedback winding or the transistor. If we simply place the 45 turn coil (the transformer) across a voltage source, current will flow in the coil and this will produce magnetic flux. This flux will cut all the turns of the coil and produce a back-voltage in each turn that will OPPOSE the applied voltage and reduce the voltage being applied to the coil. This will cause less current to flow. During the time when the magnetic flux is increasing (expanding) the current is also increasing and the full current does not flow until the magnetic flux is STATIONARY. When this effect is viewed on a set of voltmeters and ammeters, it appears that the current is LAGGING. In other words it is taking time to reach full value.
This is the delay that creates the timing for the oscillator.
The voltage generated across the primary winding at the instant WHEN THE TRANSISTOR IS TURNED OFF, is called a FLYBACK VOLTAGE. The value of this voltage is determined by the inductance of the transformer (coil), the number of turns and the strength of the magnetic flux. In our case we are taking advantage of this energy to charge a battery but if we did not "tap-off" this energy, it would enter the driver transistor as a high-voltage spike and possibly damage it. (A reverse-biased diode can be placed across the winding to absorb this energy).


വോള്‍ട്ടേജ് റഗുലേഷന്‍ പ്രായോഗിക തലത്തില്‍
Our simple circuit does not employ voltage regulation. This feature is not needed with a trickle charger. The charging current is so low the battery will never suffer from overcharge. To be of any benefit at all, voltage regulation must be accurately set for the type of battery you are charging. For a 12v jell cell, it is 14.6v. For a 12v Nicad battery,  it is 12.85.
This is the way it works: When a battery is charging, its voltage rises a small amount ABOVE the normal voltage of the battery. This is called a "floating charge" or "floating voltage" and is due to the chemical reaction within the cells, including the fact that bubbles are produced. When the battery gets to the stage of NEARLY FULLY CHARGED, the voltage rises even further and this rise is detected by a circuit to shut-down the charger.
A voltage regulated charger is supposed to have the same results. When the voltage across the battery rises to it fully charged state, the output voltage does not rise above this and thus no current is delivered.
Ideal in theory but in practice the voltage must be very accurately maintained. If its not absolutely accurate, the whole concept will not work.
In our case we don't need it as the charging current is below the "14 hour rate" and the battery is capable of withstanding a very small trickle current.
സോളാര്‍ പാനലുകള്‍ കണക്റ്റ്‌ ചെയ്യേണ്ടത് പാരലല്‍ ആയോ സീരീസ്‌ ആയോ????
One of the questions you will be asking is: Should be solar cells be connected in parallel or series?
Most individual solar cells are made from small pieces of solar material connected together and placed under a light-intensifying plastic cover. The output of the solar cells used in the prototype were 0.5v and 200mA (with bright sunlight). The circuit has a minimum operating voltage of about 1.5v so any voltage above this will produce an output. In our case the cells should be connected in series to get the best efficiency.


സോളാര്‍ പാനലുകള്‍ റിപ്പയര്‍ ചെയ്യാം
You may have a solar panel or individual solar cells and need to know if they are operating correctly.
All you need is bright sunlight and a place where the entire panel can be exposed to uniform sunlight.
The main problem is being able to access each of the cells with the leads of a multimeter while the panel is exposed to sunlight. To measure the efficiency of each cell, the panel must be delivering its energy to a load. You can place a switch on one of the lines and measure across the switch (when it is open) to determine the current being delivered.
The cells in our prototype measure 3cm x 5cm and deliver 150 mA with full sunlight. Smaller cells (2cm x 4cm) deliver 70mA.
When the cells are delivering their full rated output current, the voltage produced by each cell is about 0.4v to 0.45v  Any cell producing less than 0.35v is faulty.
If the output current of your cells or panel is known, (read the specifications on the panel)  you can check the output by measuring across the switch, as mentioned above. If the output is considerably less than this, you can short-circuit each cell in turn to see if the output current of the whole panel increases. The problem is made more difficult if two or more cells are faulty. Checking the voltage produced by each cell will detect two or more faulty cells in an array.
If you cannot get to the wiring between each of the cells, you can sometimes get to the wiring at the opposite end of the panel by cutting into the backing. This way you can check the left and right sections separately and work out if one side is operating better than the other. From there you can cut into one side of the panel and maybe get 75% of the panel operational. 75% of a panel is better than 100% of a dead panel.
This project is especially designed for a low-voltage panel. If you have a panel slightly below par, it is better to buy a few extra cells and increase the voltage so the panel can be connected directly to the battery. This way you will deliver 100% of the output to the battery. Our inverter has a maximum efficiency of 75%, so a panel that produces nearly 13.6v should have a couple of extra cells fitted so it can be connected directly to a battery.
9v to 12v OUTPUT
If you require 9v to 12v output, you will need to add the four voltage-regulating components shown in the diagram below.
With the voltage-regulation components added, the circuit produces a 9v or 12v output. This arrangement is only suitable if you have a constant, reliable, source of sun as any clouds will reduce the output to below the regulated voltage. (If a 9v1 zener diode is fitted, the output voltage will be 9v.) The BC 547 prevents the ZXT 851 oscillator transistor turning on when the voltage is slightly above 12v (or 9v). The 10u on the output stores the "reference voltage" and keeps the BC 547 turned on during the time when the output voltage is above 12v. This effectively stops the oscillator, but as soon as the output voltage drops below 12v, the circuit comes back into operation, "charge-pumping" the 10u on the output.
The 12v zener works like this: No voltage appears on the anode end (the end connected to the 100R resistor) until 12v is on the cathode. Any voltage above 12v appears on the anode and this voltage passes through the 100R to the base of the BC 547. For instance, if 12.5v is on the cathode, 0.5v will appear on the anode.  When the base sees 0.7v, the transistor turns on, so slightly more than 12.7v is needed to turn on the transistor.
The regulation components are not really necessary as a reliable output will only be present when strong sunlight is seen by the solar panel. For the cost of a rechargeable battery or set of rechargeable cells, you get a much more reliable arrangement by removing the regulation components, using the first circuit in the article, and allowing the battery to deliver the 9v or 12v. The battery appears as a HUGE electrolytic on the output, delivering a constant voltage and is capable of delivering a high current.



No of solar cells: Charging current (for 12v battery):
8 cells 22mA
10 cells xxmA
12 cells yymA
ട്രാന്‍സ്ഫോര്‍മര്‍ നിര്‍മ്മിക്കുന്ന വിധം
The primary winding consists of 45 turns of 0.7mm wire on a 10mm dia ferrite rod. Wind 40 close-wound turns on the rod then 5 spiraling turns to get back to the start.  Twist the two ends together to keep the coil in position.
The feedback winding must also be wound in the same direction if you want to keep track of the start and finish as shown in the circuit diagram. It consists of 15 turns spiral wound so that it takes 8 turns across the rod and 7 turns back to the start. Twist the two ends together to keep the coil in position.
The result is called a transformer. It's a feedback or blocking oscillator transformer with a flyback feature. The output is taken across the primary via a high-speed diode.
The oscillator will only work when the feedback winding is connected around the correct way. The correct way is shown in the diagram, with the start of the primary and secondary as shown in the diagram. For this to work, both windings must be wound in the same direction.
You can keep track of the start and finish of each winding or simply connect the transformer and see if it works. If it doesn't work, reverse the feedback winding  (reverse only one winding  - NOT both).
Nothing can be damaged by trying this method as the solar panel does not deliver enough current to damage the transistor.

ട്രാന്‍സിസ്റ്റര്‍
One of the special features of this design is the driver transistor. It is one of the new style of transistors, having a very low collector-emitter resistance (voltage drop) when saturated. It is also capable of handling a very high current (3 amps) and peaks of 20 amps. When used in a high-speed saturation mode such as this, the losses in the transistor are extremely small and it does not require heat-sinking.  Other transistors will work but the ZTX 851 transistor added 6mA to the output current due to its characteristics.
നിര്‍മ്മാണം
Wind the transformer as explained above and have it ready for fitting to the PC board. Fit the other components according to the overlay on the board making sure the transistor and diode are around the correct way. The two electrolytics must also be fitted around the correct way.
Now comes the transformer. As we have already mentioned, the easiest way to fit the transformer is to solder it in position and try the circuit. If it is around the wrong way, the circuit will not produce an output. Reverse one of the windings and the job's done.

PARTS LIST
1 -  220R  1/2 resistor
1 - 470R
1 - 1k

1  -  ZTX 851 transistor or BC 338
1  -  BY 207 or equiv high-speed diode
1  -  10u 16v electrolytic
1  -  100u 25v electrolytic
2m  -  0.25mm enamelled wire
1  -  10mm dia ferrite rod  5cm long
1- Solar Charger PC Board


Regulation components (not in kit)
1  -  100R
1  -  10u electrolytic
1  -  9v or 12v zener diode
1  -  BC 547 transistor
സര്‍ക്യൂട്ട് ടെസ്റ്റിംഗ്
The output current of the project can be measured with a multimeter set to milliamps. Place the meter between the battery and output of the circuit as shown in the diagram below. You can add an electrolytic to the output to smooth the pulses to get a more-accurate reading. Select a scale such as 0-100mA (for analogue multimeters) or 0-199mA (for digital multimeters). Note how the multimeter is connected, with the positive lead to the output of the circuit and negative to the battery.
There are many ways to "visualise" how the meter should be connected. The best way to remember is this: think of the meter as going directly across the output, to measure the current. Which way would it be placed? Obviously, the positive of the meter to the output and negative to ground. But you must NEVER place an amp-meter (ammeter) (or milliamp-meter) directly across the output of a supply as this will either damage the supply or the meter. So, include a resistor (or in our case, the battery being charged), and you will measure the "current flowing."
Do not measure the voltage without a load. The output voltage will be as high as the transistor will allow. This will be as high as the rating of the transistor. In other words it will be as high as the "zener voltage" of the transistor (the collector-to-emitter voltage-rating of the transistor).
You may not be able to measure the output of the circuit accurately with a high impedance (digital) multimeter. One constructor got a reading of 1900v from a digital meter. This is obviously incorrect and was due to the high frequency of the circuit interfering with the reading.



അവലോകനം
You can now see how the circuit works. It generates a voltage higher than the battery voltage and that's how it can deliver energy to the battery. The energy comes in the form of "pulses" and we can measure  the "average" or "equivalent to DC value" on a milliamp meter (a multimeter set to milliamps).

Transformers are one of the versatile components in electronics. They can be large, small, high-frequency, low-frequency, single winding, multi-winding, step-up or step-down (voltage) high-current, isolating, extremely-high voltage, voltage-reversing or even a combination of any of the above. They can be technically very complex, or very simple to design and you could spend a life-time studying their construction.
On the other hand you can learn how to construct them very quickly. Simply copy a design and maybe modify it a little. By copying a design you "home-in" on the essential features such as wire-size, core size, number of turns etc and you can change any of the features to suit your own requirements.
Before we start, let's point out the two main mis-conceptions of a transformer. Firstly, a transformer only operates on a voltage that turns on and off. This is commonly called AC (it stands for Alternating Current but this also means the voltage is ALTERNATING). The voltage can also be a DC voltage that turns on and off - commonly called chopped DC.
A battery cannot be connected directly to a transformer. It will not work. An oscillator (an oscillator circuit) is needed to convert the DC into pulses.
Secondly, the energy into a transformer (called watts) is equal to the watts output of the transformer (minus some losses). If a transformer on 240v AC (or 110v) produces 240 AMPS output,  the output voltage must be low because the maximum input wattage for 240v is 2400 watts. This means the maximum output voltage is 2400/240 = 10 volts. Even though a transformer performs amazing things, it abides by the laws of physics. In general terms, if an output voltage is higher than the input voltage, the current will be lower.

Sunday, October 7, 2012

പെട്രോളിനെ കുക്കിംഗ് ഗ്യാസാക്കി മാറ്റാം

പെട്രോളിനെ കുക്കിംഗ് ഗ്യാസാക്കി മാറ്റാം
HOW TO COVERT PETROL TO COOKING GAS
                                                                          രൂക്ഷമായ പാചക വാതക ക്ഷാമം മറ്റു പാചക മാധ്യമങ്ങളെ കണ്ടെത്താന്‍ നമ്മളെ നിര്‍ബന്ധിതരാക്കിയിരിക്കുകയാണ്.നഗര വാസികള്‍ പണ്ടേ ഉപേക്ഷിച്ച വിറകടുപ്പുകള്‍ പോലും പലരും  ഇപ്പോള്‍  വീണ്ടും ഉപയോഗിക്കാന്‍  ആരംഭിച്ചിരിക്കുന്നു.1984 ല്‍ കൊച്ചി റിഫൈനറിയില്‍ ഉണ്ടായ പൊട്ടിത്തെറിയെ തുടര്‍ന്ന്  മാസങ്ങളോളം ഗ്യാസ്‌ ക്ഷാമം നേരിട്ടിരുന്നു.അന്ന് തദ്ദേശീയമായി വികസിപ്പിച്ചെടുത്ത ഒരു നാടന്‍ സാങ്കേതിക വിദ്യ ഇവിടെ വിവരിക്കുകയാണ്.ഈ സാങ്കേതിക വിദ്യ ഇലക്ട്രോണിക്സ് കേരളം മാസികയ്ക്ക് നല്‍കിയത്‌ പ്രസിദ്ധ തദ്ദേശീയ സാങ്കേതിക വിദ്യാ വിദഗ്ദ്ധനായ വറുഗീസ് ഗാര്‍ഡിയന്‍ ആണ്.






ചിത്രം ശ്രദ്ധിക്കൂ...യഥാക്രമം .1 എയറേറ്റര്‍ ,2,3,4, ഒരു ലിറ്റര്‍ പ്ലാസ്റ്റിക് ബോട്ടില്‍ 5 ഗോബര്‍ ഗ്യാസ്‌ സ്റ്റവ്വ് ഇത്രയും സാധനങ്ങളാണ് നമുക്ക്‌ പെട്രോളിനെ കുക്കിംഗ് ഗ്യാസ്‌ ആക്കി മാറ്റുന്ന ഉപകരണം നിര്‍മ്മിക്കാന്‍ ആവശ്യം.എയറേറ്റര്‍ എന്നാല്‍ വീട്ടിലുപയോഗിക്കുന്ന അക്വോറിയങ്ങളില്‍ കുമിളകള്‍ ഉണ്ടാക്കാന്‍ ഉപയോഗിക്കുന്ന ചെറിയ കംപ്രസറാണ്.ഇതിനു ഏകദേശം 150 രൂപ വില വരും .രണ്ടു കുപ്പികളില്‍ മുക്കാല്‍ ഭാഗം വീതം വെള്ളവും ഒരു കുപ്പിയില്‍ മുക്കാല്‍ ഭാഗം പെട്രോളും എടുക്കുക ചിത്രത്തിലെ ക്രമം അനുസരിച്ച് കുപ്പികളും ഗ്യാസ്‌ സ്റ്റവ്വും ക്രമീകരിക്കുക.കുപ്പികളെ തമ്മില്‍ ബന്ധിപ്പിക്കുന്ന കുഴല്‍  അക്വോറിയങ്ങളില്‍ഉപയോഗിക്കുന്ന തരം തന്നെയാണ്.
                               ക്രമീകരണങ്ങള്‍ പൂര്‍ത്തിയായതിനു ശേഷം മിനി കംപ്രസര്‍ കരണ്ടില്‍ കുത്തുക അതില്‍ ഉല്‍പ്പാദിപ്പിക്കുന്ന വായു കുമിളകള്‍ ഒന്നാമത്തെ കുപ്പിയിലെ ജലത്തിലൂടെ കടന്ന് പെട്രോള്‍ നിറച്ച കുപ്പിയില്‍ എത്തുന്നു.പെട്രോള്‍ നിറച്ച കുപ്പിയിലെ കുഴലിന്റെ അഗ്രത്തില്‍ ഒരു ബബ്ലര്‍ ഖടിപ്പിക്കുന്നത് നന്നായിരിക്കും. ബബ്ലര്‍ എന്നത്കേവലം രണ്ടു രൂപാ വിലയുള്ള ഒരു സിറാമിക് ഉപകരണമാണ് ഇതും അക്വോറിയം ഉപകരണങ്ങള്‍ വില്‍ക്കുന്ന കടകളില്‍ ലഭിക്കും ഇത് മൂലം കൂടുതല്‍ കുമിളകള്‍ ഉല്‍പ്പാദിപ്പിക്കാം മൂന്നാമത്തെ കുപ്പിയില്‍ നിന്നും വരുന്ന ഇന്ധന ഗ്യാസ്‌ അടുത്ത കുപ്പിയിലെ ജലത്തിലൂടെ കടന്ന്  അടുപ്പിലേക്കെത്തുന്നു. ശ്രദ്ധിക്കുക കംപ്രസര്‍ ഓണ്‍ ചെയ്തതിനു ശേഷം  ഒരു തീപ്പെട്ടി കൊള്ളി ഉരച്ചു ബര്‍ണ്ണറിനു  മുകളില്‍ കാണിച്ചാല്‍ മാത്രമേ അടുപ്പ് കത്തു.ഇതിനു ഗ്യാസിന്റെ പോലെ അപകട സ്വഭാവം ഇല്ല.
ഒരു കാര്യം പ്രത്യേകം ശ്രദ്ധിക്കണം എയറേറ്ററില്‍ നിന്ന് വരുന്ന കുഴല്‍ ഒന്നാമത്തെ കുപ്പിയിലെ വെള്ളത്തില്‍ മുങ്ങിയിരിക്കണം.അതായത്‌ കുപ്പിയുടെ ചുവട്ടില്‍ നിന്നും മൂന്നു സെന്റി മീറ്റര്‍ ഉയരെ കുഴലിന്റെ അഗ്രം നില്‍ക്കണം.അടുത്ത കുഴല്‍ കുപ്പിയുടെ ഒഴിഞ്ഞ ഭാഗത്ത് നിന്നും പെട്രോള്‍ നിറച്ച കുപ്പിയുടെ ചുവട്ടില്‍ എത്തുന്നത് പോലെ,പെട്രോളിലൂടെ വായു കുമിളകള്‍ കടന്നു പോകുമ്പോള്‍ അതില്‍ ലയിക്കുന്ന പ്രോപ്പയിന്‍,ബ്യുട്ടയിന്‍ തന്മാത്രകള്‍ കുപ്പിയിലെ ഒഴിഞ്ഞ ഭാഗത്ത്‌ ശേഖരിക്കപ്പെടുന്നു.ഈ ഗ്യാസ്‌ അവിടെ നിന്നും അടുത്ത കുപ്പിയിലെ വെള്ളത്തിലൂടെ കടന്നു ഗ്യാസ്‌ സ്റ്റവ്വിലെത്തിയാല്‍ നമുക്ക്‌ പാചകത്തിനുപയോഗിക്കാം.2,4 എന്നീ കുപ്പികളില്‍ നിറച്ച വെള്ളം. ബായ്ക്ക് ഫയറിംഗ് എന്ന അപകടം  ഒഴിവാക്കാനായി ഉപയോഗിക്കുന്നതാണ്..ഈ ഉപരണത്തില്‍ ..ഗോബര്‍ ഗ്യാസ്‌ സ്റ്റവ്മാത്രമേ ശരിയായി പ്രവര്‍ത്തിക്കൂ.അല്ലെങ്കില്‍ സാധാരണ ഗ്യാസടുപ്പിന്റെ ജെറ്റ്‌ഊരി മാറ്റിയതിനു ശേഷം ഉപയോഗിക്കണം.
                                                                             ഈ അടുപ്പ്‌ വളരെ നല്ല രീതിയില്‍ പ്രവര്‍ത്തിക്കും.സാധാരണ LPG ഉപയോഗിക്കുമ്പോള്‍ ഉള്ളപോലെ നീല ജ്വാലയോടെ അടുപ്പ്‌ കത്തും.ഒട്ടും പുകയുണ്ടാകില്ല.പാത്രങ്ങളില്‍ കരിപിടിക്കില്ല.ജ്വാലയ്ക്ക്  LPG കത്തുമ്പോഴുള്ള ആരോഗ്യം ഇല്ലെങ്കിലും നല്ല ചൂടായിരിക്കും.
                                    പെട്രോള്‍ നേരിട്ട് ഉപയോഗിക്കുന്നതിനാല്‍ അപകട സാധ്യത ഏറുന്നു എന്ന പോരായ്മ മൂലം കുട്ടികള്‍ ഉപയോഗിക്കുന്നത് ആശാസ്യമല്ല.ഒരു ലിറ്റര്‍ പെട്രോള്‍ ഉണ്ടെങ്കില്‍ ഒരാഴ്ച സുഖമായി ഓടും.ഹാപ്പി എക്സ്പെരിമെന്റ്.........
NB കുപ്പികളും മിനി കംപ്രസറും ഡബിള്‍ സൈഡ് ടേപ്പ്‌ ഉപയോഗിച്ച് മേശപ്പുറത്ത് ഒട്ടിച്ചു വയ്ക്കുന്നത് അപകട സാധ്യത കുറയ്ക്കും കുട്ടികള്‍   മുതിര്‍ന്നവരുടെ സഹായത്തോടെ മാത്രമേ ഇത്തരം പരീക്ഷണങ്ങള്‍ നടത്താവൂ.
how to convert petrol to gas
എഴുതിയത്‌  നന്ദകുമാര്‍

Tuesday, October 2, 2012

ഫാനിട്ട് ഉറങ്ങുന്നവര്‍ വായിക്കാന്‍

ഫാനിട്ട് ഉറങ്ങുന്നവര്‍ വായിക്കാന്‍



കൊറിയയിലെ ഗ്രാമീണരില്‍ ഒരു അന്ധവിശ്വാസമുണ്ട്. ഒരു രാത്രി മുഴുവന്‍ സീലിംഗ് ഫാനിട്ട് അതിനടിയില്‍ കിടന്നുറങ്ങിയാല്‍ ശ്വാസം കിട്ടാതെ പിടഞ്ഞ് മരിക്കുമെന്ന്. അന്ധവിശ്വാസം മറയാക്കി കൊറിയയില്‍ വില്‍പനയ്‌ക്കെത്തുന്നത് ടൈമര്‍ സംവിധാനമുള്ള പ്രത്യേകരതരം ഫാനുകളാണ്. നിശ്ചിത സമയം കഴിഞ്ഞാല്‍ ഫാന്‍ തനിയെ ഓഫാകുമെന്നതിനാല്‍ മരണഭയമില്ലാതെ കൊറിയക്കാര്‍ ഉറങ്ങും.

കൊറിയക്കാരെ പോലെയല്ല

നമ്മുടെ നാട്ടുകാര്‍. ചൂടായാലും തണുപ്പായാലും തലയ്ക്കുമുകളില്‍ ഫാന്‍ കറങ്ങിയില്ലെങ്കില്‍ ഉറക്കം വരാത്തവരാണ് അധികവും. ഫാനില്ലാതെ ഉറങ്ങാന്‍ കഴിയാത്ത് ശീലത്തിന് അടിമകളായവര്‍ പവര്‍ക്കട്ട് കാലത്തെ അതിജീവിക്കുന്നത് ഏറെ പ്രയാസപ്പെട്ടാണ്.

രാത്രി മുഴുവന്‍ ഫാനിട്ട് കിടന്നുറങ്ങാമോ? ഇത് എന്തെങ്കിലും ആരോഗ്യ പ്രശ്‌നങ്ങള്‍ ഉണ്ടാക്കുമോ? ഇങ്ങനെയൊക്കെ ചിന്തിച്ച് ഉഷ്ണിക്കുന്നവരും ധാരാളമാണ്. ഫാനിന്റെ അടിമകളാകുന്നത് അത്ര നന്നല്ല. പകല്‍ കൊടും ചൂടുള്ള മേല്‍ക്കൂരയ്ക്കു താഴെ ചുറ്റിത്തിരിയുന്ന ഫാന്‍ മുറിക്കുള്ളിലെ ചൂട് കുറയ്ക്കാറില്ല.


മുറിയിലെ ചൂട് കുറയാന്‍ എയര്‍ കൂളറോ എയര്‍ കണ്ടീഷനറോ വേണം. മുറിയില്‍ നല്ല കാറ്റുണ്ടാക്കുക മാത്രമാണ് ഫാന്‍ ചെയ്യുന്നത്. ചൂടുകാലത്ത് വിയര്‍പ്പു കൂടും. വിയര്‍പ്പിനുമേല്‍ കാറ്റടിക്കുമ്പോള്‍ ജലാംശം ബാഷ്പീകരിക്കും. അതാണ് നമുക്ക് തണുപ്പ് അനുഭവപ്പെടുന്നത്.


രാത്രി മുഴുവന്‍ ഫാനിട്ടു കിടക്കുന്നവര്‍ കിടപ്പുമുറിയില്‍ നല്ല വെന്റിലേഷന്‍ സൗകര്യങ്ങളുണ്ടെന്ന് ഉറപ്പു വരുത്തണം. പെഡസ്റ്റ്യല്‍ ഫാനിനേക്കാള്‍ മുറിയില്‍ എല്ലായിടവും കാറ്റ് എത്തിക്കുന്നത് സീലിംഗ് ഫാനാണ്.


ശരീരം മുഴുവന്‍ മൂടുംവിധം വസ്ത്രം ധരിച്ചു വേണം രാത്രി മുഴുവന്‍ ഫാനിട്ട് കിടന്നുറങ്ങുന്ന ശീലമുള്ളവര്‍ കിടക്കാന്‍. നഗ്നശിരീരത്തില്‍ കൂടുതല്‍ നേരം കാറ്റടിക്കുമ്പോള്‍ ചര്‍മ്മം വല്ലാതെ വരണ്ടു പോകും.


ഫാനിട്ട് ഉറങ്ങിയാല്‍ ചര്‍മ്മത്തിലെ ജലാംശം ബാഷ്പീകരിച്ച് നിര്‍ജ്ജലീകരണം ഉണ്ടാകാനിടയുണ്ട്. ഇതാണ് ഇങ്ങനെ ഉറങ്ങുന്നവര്‍ ഉണരുമ്പോള്‍ ക്ഷീണിതരായി കാണപ്പെടാന്‍ ഒരു കാരണം.


ആസ്ത്മയും അപസ്മാരവും ഉള്ളവര്‍ മുഖത്ത് ശക്തിയായി കാറ്റടിക്കും വിധം കിടക്കരുത്. കുഞ്ഞുങ്ങളുടെ മുഖത്തേക്കും ശക്തമായി കാറ്റടിക്കാതെ ശ്രദ്ധിക്കണം. മിതമായ വേഗതയില്‍ ഫാനിടുന്നതാണ് എപ്പോഴും നന്ന്.


കിടപ്പുമുറിയില്‍ വസ്ത്രങ്ങള്‍, കടലാസുകള്‍, പുസ്തകങ്ങള്‍, ചാക്കുകെട്ടുകള്‍, ബോക്‌സുകള്‍ എന്നിവയൊന്നും വാരിക്കൂട്ടിയിടരുത്. അതില്‍ നിന്ന് പൊടിപറന്ന് അലര്‍ജിയുണ്ടാക്കിയേക്കും.


കൊതുകിനെ ഓടിക്കാനാണ് ചിലര്‍ അമിതവേഗതയില്‍ ഫാനിടുന്നത്. എന്നാല്‍ ഫാനുകള്‍ കൊണ്ട് കൊതുകിനെ തുരത്താമെന്ന് കരുതേണ്ട. കൊതുകിനെ പ്രതിരോധിക്കാന്‍ കൊതുകുവല തന്നെയാണ് നല്ലത്.


ഫാനിന്റെ ലീഫുകള്‍ പൊടിയും ചിലന്തിവലകളും ഒക്കെ പറ്റിപ്പിടിച്ചിരിക്കാനുള്ള
സുരക്ഷിത സ്ഥലമാണ്. അതിനാല്‍ ഫാനിന്റെ ലീഫിന്റെ ഇരു വശവും ആഴ്ചയിലൊരിക്കല്‍ വൃത്തിയാക്കണം. ഫാനുകളുടെ കൊളുത്തും നട്ടും ബോള്‍ട്ടും സ്‌ക്രൂവുമൊക്കെ സുരക്ഷിതമാണോ എന്നും കൃത്യമായി പരിശോധിക്കണം.

ഫാനിന്റെ ശബ്ദശല്യം ചിലരുടെ ഉറക്കം നഷ്ടപ്പെടുത്താറുമുണ്ട്. മാരകമായ ആരോഗ്യ പ്രശ്‌നങ്ങളുണ്ടാക്കില്ലെങ്
കിലും മുതിര്‍ന്നവരും രോഗികളും ശ്വാസ സംബന്ധമായ ബുദ്ധിമുട്ടുള്ളവരും രാത്രി മുഴുവന്‍ ഫാനിന്‍ കീഴില്‍ കിടന്നുറങ്ങുന്നത് നല്ലതല്ലെന്ന് ഡോക്ടര്‍മാര്‍ പറയുന്നു. ഫാനിട്ടു തന്നെ ഉറങ്ങണമെന്ന് നിര്‍ബന്ധമുള്ളവര്‍ നിര്‍ജ്ജലീകരണം ഒഴിവാക്കാന്‍ ധാരാളം വെള്ളം കുടിച്ച ശേഷം ഉറങ്ങാനും ഡോക്ടര്‍മാര്‍ പറയുന്നു
