30 L.E.D പ്രോജക്ടുകള്‍


             30 L.E.D പ്രോജക്ടുകള്‍


LED കള്‍ ഉപയോഗിച്ചുള്ള കുറച്ചു സര്‍ക്യൂട്ടുകള്‍ ...
തുടക്കക്കാര്‍ക്ക് വളരെയധികം പ്രയോജനപ്രദമായിരിക്കും..വളരെ ലളിതമായ ഇംഗ്ലീഷില്‍ വിവരിച്ചിരിക്കുന്നു
The LED (Light Emitting Diode) is the modern-day equivalent to the light-globe.
It has changed from a dimly-glowing indicator to one that is too-bright to look at.
However it is entirely different to a "globe."
A globe is an electrical device consisting of a glowing wire while a LED is an electronic device.
A LED is more efficient, produces less heat and must be "driven" correctly to prevent it being damaged.
This eBook shows you how to connect a LED to a circuit plus a number of projects using LEDs.
It's simple to use a LED - once you know how.

CONNECTING A LED
A LED must be connected around the correct way in a circuit and it must have a resistor to limit the current.
The LED in the first diagram does not illuminate because a red LED requires 1.7v and the cell only supplies 1.5v. The LED in the second diagram is damaged because it requires 1.7v and the two cells supply 3v. A resistor is needed to limit the current to about 25mA and also the voltage to 1.7v, as shown in the third diagram.  The fourth diagram is the circuit for layout #3 showing the symbol for the LED, resistor and battery and how the three are connected. The LED in the fifth diagram does not work because it is around the wrong way.

CHARACTERISTIC VOLTAGE DROP
When a LED is connected around the correct way in a circuit it develops a voltage across it called the CHARACTERISTIC VOLTAGE DROP.
A LED must be supplied with a voltage that is higher than its "CHARACTERISTIC VOLTAGE" via a resistor - called a VOLTAGE DROPPING RESISTOR  or CURRENT LIMITING RESISTOR - so the LED will operate correctly and provide at least 10,000 to 50,000 hours of illumination.
A LED works like this:  A LED and resistor are placed in series and connected to a voltage.
As the voltage rises from 0v, nothing happens until the voltage reaches about 1.7v. At this voltage a red LED just starts to glow. As the voltage increases, the voltage across the LED remains at 1.7v but the current through the LED increases and it gets brighter.
We now turn our attention to the current though the LED.  As the current increases to 5mA, 10mA, 15mA, 20mA the brightness will increase and at 25mA, it will be a maximum. Increasing the supply voltage will simply change the colour of the LED slightly but the crystal inside the LED will start to overheat and this will reduce the life considerably.
This is just a simple example as each LED has a different CHARACTERISTIC VOLTAGE DROP and a different maximum current.
In the diagram below we see a LED on a 3v supply, 9v supply and 12v supply. The current-limiting resistors are different and the first circuit takes 6mA, the second takes 15mA and the third takes 31mA. But the voltage across the red LED is the same in all cases. This is because the LED creates the
CHARACTERISTIC VOLTAGE DROP and this does not change.
It does not matter if the resistor is connected above or below the LED. The circuits are the SAME in operation:


HEAD VOLTAGE

Now we turn our attention to the resistor.
As the supply-voltage increases, the voltage across the LED will be constant at 1.7v (for a red LED) and the excess voltage will be dropped across the resistor. The supply can be any voltage from 2v to 12v or more.
In this case, the resistor will drop 0.3v to 10.3v.
This is called HEAD VOLTAGE - or HEAD-ROOM or OVERHEAD-VOLTAGE. And the resistor is called the CURRENT-LIMIT resistor.
The following diagram shows HEAD VOLTAGE:
The voltage dropped across this resistor, combined with the current, constitutes wasted energy and should be kept to a minimum, but a small HEAD VOLTAGE is not advisable (such as 0.5v). The head voltage should be a minimum of 1.5v - and this only applies if the supply is fixed.
The head voltage depends on the supply voltage. If the supply is fixed and guaranteed not to increase or fall, the head voltage can be small (1.5v minimum).
But most supplies are derived from batteries and the voltage will drop as the cells are used.
Here is an example of a problem:
Supply voltage:  12v
7  red LEDs in series = 11.9v
Dropper resistor = 0.1v
As soon as the supply drops to 11.8v, no LEDs will be illuminated.
Example 2:
Supply voltage 12v
5 green LEDs in series @ 2.1v = 10.5v
Dropper resistor = 1.5v
The battery voltage can drop to 10.5v
But let's look at the situation more closely.
Suppose the current @ 12v = 25mA.
As the voltage drops, the current will drop.
At 11.5v, the current will be 17mA
At 11v, the current will be 9mA
At 10.5v, the current will be zero
You can see the workable supply drop is only about 1v.
Many batteries drop 1v and still have over 80% of their energy remaining. That's why you need to design your circuit to have a large
HEAD VOLTAGE.
A large Head Voltage is also needed when a plug-pack (wall wart) is used. These devices consist of a transformer, set of diodes and an electrolytic. The voltage marked on the unit is the voltage it will deliver when fully loaded. It may be 200mA, 300mA or 500mA. When this current is delivered, the voltage will be 9v or 12v. But if the current is less than the rated current, the output voltage will be higher. It may be 1v, 2v or even 5v higher.
This is one of the characteristics of a cheap transformer. A cheap transformer has very poor regulation, so to deliver 12v @ 500mA, the transformer produces a higher voltage on no-load and the voltage drops as the current increases.
You need to allow for this extra voltage when using a plug-pack so the LEDs do not take more than 20mA to 25mA.

TESTING A LED
If the cathode lead of a LED cannot be identified, place 3 cells in series with a 220R resistor and illuminate the LED.  4.5v allows all types of LEDs to be tested as white LEDs require up to 3.6v.  Do not use a multimeter as some only have one or two cells and this will not illuminate all types of LEDs. In addition, the negative lead of a multimeter is connected to the positive of the cells (inside the meter) for resistance measurements - so you will get an incorrect determination of the cathode lead.



CIRCUIT TO TEST ALL TYPES OF LEDs
IDENTIFYING A LED
 A LED does not have a "Positive" or "Negative" lead. It has a lead identified as the "Cathode" or Kathode" or "k". This is identified by a flat on the side of the LED and/or by the shortest lead.
This lead goes to the 0v rail of the circuit or near the 0v rail (if the LED is connected to other components).
Many LEDs have a "flat" on one side and this identifies the cathode. Some surface-mount LEDs have a dot or shape to identify the cathode lead and some have a cut-out on one end.
Here are some of the identification marks:



LEDs ARE CURRENT DRIVEN DEVICES
A LED is described as a CURRENT DRIVEN DEVICE.  This means the illumination is determined by the amount of current flowing through it.
This is the way to see what we mean: Place a LED and 100R resistor in series and connect it to a variable power supply.
As the voltage is increased from 0v, to 1v, the LED will not produce any illumination, As the voltage from the power-supply increases past 1v, the LED will start to produce illumination at about 1.6v to 1.7v (for a red LED). As the voltage is increased further, the illumination increases but the voltage across the LED does not increase. (It may increase 0.1v) but the brightness will increase enormously. That's why we say the LED is a CURRENT DRIVEN DEVICE.
The brightness of a LED can be altered by increasing or decreasing the current. The effect will not be linear and it is best to experiment to determine the best current-flow for the amount of illumination you want. High-bright LEDs and super-bright LEDs will illuminate at 1mA or less, so the quality of a LED has a lot to do with the brightness. The life of many LEDs is determined at 17mA. This seems to be the best value for many types of LEDs.

1mA to 5mA LEDs
Some LEDs will produce illumination at 1mA. These are "high Quality" or "High Brightness" LEDs and the only way to check this feature is to test them @1mA as shown below.

THE 5v LED
Some suppliers and some websites talk about a 5v white or blue LED. Some LEDs have a small internal resistor and can be placed on a 5v supply. This is very rare.
Some websites suggest placing a white LED on a 5v supply. These LEDs have a characteristic voltage-drop of 3.6v and should not be placed directly on a voltage above this value.
The only LED with an internal resistor is a FLASHING LED. These LEDs can be placed on a supply from 3.5v to 12v and flash at approx 2Hz. The LED is very weak on 3.5v but it flashing can be used to drive a powerful LED (see circuits section). It can also be used to produce a beep for a beeper FM transmitter.
NEVER assume a LED has an internal resistor. Always add a series resistor. Some high intensity LEDs are designed for 12v operation. These LEDs have a complete internal circuit to deliver the correct current to the LED. This type of device and circuitry is not covered in this eBook.

LEDs IN SERIES
LEDs can be placed in series providing some features are taken into account. The main item to include is a current-limiting resistor.
A LED and resistor is called a string. A string can have 1, 2, 3 or more LEDs.
Three things must be observed:
1. MAXIMUM CURRENT through each string = 25mA.
2. The CHARACTERISTIC VOLTAGE-DROP must be known so the correct number of LEDs are used in any string.
3. A DROPPER RESISTOR must be included for each string.
The following diagrams show examples of 1-string, 2-strings and 3-strings:


LEDs IN PARALLEL
LEDs CANNOT be placed in parallel - until you read this:
LEDs "generate" or "possess" or "create" a voltage across them called the
CHARACTERISTIC VOLTAGE-DROP  (when they are correctly placed in a circuit).
This voltage is generated by the type of crystal and is different for each colour as well as the "quality" of the LED (such as high-bright, ultra high-bright etc). This characteristic cannot be altered BUT it does change a very small amount from one LED to another in the same batch. And it does increase slightly as the current increases.
For instance, it will be different by as much as 0.2v for red LEDs and 0.4v for white LEDs from the same batch and will increase by as much as 0.5v when the current is increased from a minimum to maximum.
You can test 100 white LEDs @15mA and measure the CHARACTERISTIC VOLTAGE-DROP to see this range.
If you get 2 LEDs with identical
CHARACTERISTIC VOLTAGE-DROP, and place them in parallel, they will each take the same current. This means 30mA through the current-limiting resistor will be divided into 15mA for each LED.
However if one LED has a higher
CHARACTERISTIC VOLTAGE-DROP, it will take less current and the other LED will take considerably more. Thus you have no way to determine the "current-sharing"  in a string of parallel LEDs.  If you put 3 or more LEDs in parallel, one LED will start to take more current and will over-heat and you will get very-rapid LED failure.  As one LED fails, the others will take more current and the rest of the LEDs will start to self-destruct. The reason why they take more current is this: the current-limit resistor will have been designed so that say 60mA will flow when 3 LEDs are in parallel. When one LED fails, the remaining LEDs will take 30mA each.
Thus LEDs in PARALLEL should be avoided.
Diagram A below shows two green LEDs in parallel. This will work provided the Characteristic Voltage Drop across each LED is the same.
In diagram B the Characteristic Voltage Drop is slightly different for the second LED and the first green LED will glow brighter.
In diagram C the three LEDs have different Characteristic Voltage Drops and the red LED will glow very bright while the other two LEDs will not illuminate. All the current will pass through the red LED and it will be damaged.
The reason why the red LED will glow very bright is this: It has the lowest Characteristic Voltage Drop and it will create a 1.7v for the three LEDs. The green and orange LEDs will not illuminate at this voltage and thus all the current
from the dropper resistor will flow in the red LED and it will be destroyed.


THE RESISTOR
The value of the current limiting resistor can be worked out by Ohms Law.
Here are the 3 steps:
1. Add up the voltages of all the LEDs in a string.   e.g:  2.1v + 2.3v + 2.3v + 1.7v = 8.4v
2. Subtract the LED voltages from the supply voltage.  e.g:  12v - 8.4v = 3.6v
3. Divide the 3.6v (or your voltage) by the current through the string.
for 25mA:   3.6/.025 =144 ohms
for 20mA:   3.6/.02  = 180 ohms
for 15mA:   3.6/.015 = 250 ohms
for 10mA:   3.6/.01   = 360 ohms
This is the value of the current-limiting resistor.

Here is a set of strings for a supply voltage of 3v to 12v and a single LED:



Here is a set of strings for a supply voltage of 5v to 12v and a white LED: Here is a set of strings for a supply voltage of 5v to 12v and two LEDs:


LED series/parallel array wizard
The LED series/parallel array wizard below, is a calculator that will help you design large arrays of single-colour LEDs.
This calculator has been designed by Rob Arnold and you will be taken to his site:
 http://led.linear1.org/led.wiz when you click: Design my array
The wizard determines the current limiting resistor value for each string of the array and the power consumed. All you need to know are the specs of your LED and how many you'd like to use. The calculator only allows one LED colour to be used. For mixed colours, you will have to use the 3 steps explained above. The result is not always correct. Read the discussion below: "THE DANGERS OF USING A "LED WIZARD" to understand the word "HEAD VOLTAGE."  The HEAD VOLTAGE should be as high as possible to allow for the differences in Characteristic Voltage and the variations in power supply voltage.

Source voltage Help
diode forward voltage Help
diode forward current (mA) Help
number of LEDs in your array
View output as: ASCII schematic wiring diagram Help
help with resistor colour codes








Resistor Calculator

Use this JavaScript resistor calculator to work out the value of the current-limiting resistor:
Source voltage =
LED forward voltage drop =
LED current in milliamps =
Current-limiting resistance in Ohms =
Closest 5% Resistor =
Resistor wattage =
Actual current =
Power dissipated by LED      (watts) =
Power dissipated by resistor (watts) =
LED VOLTAGE AND CURRENT
LED characteristics are very broad and you have absolutely no idea of any value until you test the LED.
However here are some of the generally accepted characteristics:



THE DANGERS OF USING A "LED WIZARD"
You can find a LED WIZARD on the web that gives you a circuit to combine LEDs in series and/or parallel for all types of arrays.
Here is an example, provided by a reader. Can you see the major fault?


The characteristic voltage (the colour of the LED) is not important in this discussion. Obviously white LEDs will not work as they require 3.4v to 3.6v to operate.
The main fault is the dropper resistor.
Read our article on LEDs.
The most important component is the DROPPER RESISTOR.
It must allow for the difference between the maximum and minimum supply voltage and ALSO the maximum and minimum CHARACTERISTIC VOLTAGE of the string of LEDs.
When we say a red LED has a CHARACTERISTIC VOLTAGE of 1.7v, we need to measure the exact maximum and minimum value for the LEDs we are installing.
Some high-bright and super-high-bright LEDs have a Characteristic Voltage of 1.6v to 1.8v and this will make a big difference when you have 8 LEDs in series.
Secondly, the 12v supply may rise to 13.6v when the battery is being charged and fall to 10.8v at the end of its life.
Thirdly, you need to know the current required by the LEDs.
The normal value is 17mA for long life.
This can rise to 20mA but must not go higher than 25mA
You should also look at the minimum current. Many high-bright LEDs will perform perfectly on 5-10mA and become TOO BRIGHT on 20mA.
As you can see, it is much more complex than a WIZARD can handle.
That's why it produced the absurd result above.
The maximum characteristic voltage for 8 red LEDs is 8x1.8v = 14.4v
This means you can only put 6 LEDs in series. = 10.8v
The LEDs will totally die when the battery reaches 10.8v
The value of the dropper resistor for 6 LEDs and a supply of 12v @20mA = 60 ohms. When the battery voltage rises to 13.6v during charging, the current will be: 46mA. This is too high.
The CURRENT LIMITING resistor is too low.
We need to have a higher-value CURRENT LIMITING resistor and fewer LEDs.
Use 5 LEDs:
The characteristic voltage for 5 LEDs will be:  5 x 1.7v = 8.5v
Allow a current of 20mA when the supply is 12.6v   Dropper resistor = 200 ohms.
Current at 10.8v will be 11mA. And current at 13.6v will be 25mA
Now you can see why the value of the CURRENT LIMITING RESISTOR has to be so high.
SOLDERING LEDs
LEDs are the most heat-sensitive device of all the components.
When soldering surface-mount LEDs, you should hold the LED with tweezers and "tack" one end. Then wait for the LED to cool down and solder the other end very quickly. Then wait a few seconds and completely solder the first end. Check the glow of each LED with 3 cells in series and a 220R resistor. If you have overheated the LED, its output will be dim, or a slightly different colour, or it may not work at all. They are extremely sensitive to heat - mainly because the crystal is so close to the soldering iron.

HIGH-BRIGHT LEDs
LEDs have become more efficient over the past 25 years.
Originally a red LED emitted 17mcd @20mA. These LEDs now emit 1,000mcd to 20,000mcd @20mA.
This means you can lower the current and still produce illumination. Some LEDs operate on a current as low as 1mA

LEDs as LIGHT DETECTORS
LEDs can also be used to detect light.
Green LEDs are the best, however all LEDs will detect light and produce a voltage equal to the CHARACTERISTIC VOLTAGE-DROP, providing they receive sufficient light. The current they produce is miniscule however high-bright and super-bright LEDs produce a higher output due to the fact that their crystal is more efficient at converting light into electricity.
The Solar Tracker project uses this characteristic to track the sun's movement across the sky.
BI-COLOUR, TRI-COLOUR, FLASHING LEDS and 7-colour LEDs
LEDs can also be obtained in a range of novelty effects as well as a red and green LED inside a clear or opaque lens. You can also get red, blue, white, green or any combination inside a LED with 2 leads.
Simply connect these LEDs to a 6v supply and 330R series dropper resistor to see the effects they produce.
Some LEDs have 3 leads and the third lead needs to be pulsed to change the pattern.
Some LEDs can be reversed to produce a different colour. These LEDs contain red and green and by reversing the voltage, one or the other colour will illuminate.
When the voltage is reversed rapidly, the LED produces orange.
Sometimes it is not convenient to reverse the voltage to produce orange.
In this case three leaded LEDs are available to produce red, green and orange.

FLASHING LEDs
Flashing LEDs contain a chip and inbuilt current-limiting resistor. They operate from 3.5v to 12v.


NOVELTY LEDs
Novelty LEDs can have 2 or three leads. They
contain a microcontroller chip, inbuilt current-limiting resistor and two or three colours.
The two leaded LEDs cycle through a range of colours, including flashing and fading.
The three leaded LEDs have up to 16 different patterns and the control lead must be taken from 0v to rail volts to activate the next pattern.


LEDs LEDs LEDs
There are hundreds of circuits that use a LED or drive a LED or flash a LED and nearly all the circuits in this eBook are different.
Some flash a LED on a 1.5v supply, some use very little current, some flash the LED very brightly and others use a flashing LED to create the flash-rate.
You will learn something from every circuit. Some are interesting and some are amazing. Some consist of components called a "building Block" and they can be added to other circuits to create a larger, more complex, circuit.
This is what this eBook is all about.
It teaches you how to build and design circuits that are fun to see working, yet practical.

You will learn a lot  . . . . even from these simple circuits.
Colin Mitchell
TALKING ELECTRONICS.
talking@tpg.com.au

SI NOTATION
All the schematics in this eBook have components that are labelled using the System International (SI) notation system. The SI system is an easy way to show values without the need for a decimal point. Sometimes the decimal point is difficult to see and the SI system overcomes this problem and offers a clear advantage.
Resistor values are in ohms (R), and the multipliers are: k for kilo, M for Mega. Capacitance is measured in farads (F) and the sub-multiples are u for micro, n for nano, and p for pico.  Inductors are measured in Henrys (H) and the sub-multiples are mH for milliHenry and uH for microHenry.
A 10 ohm resistor would be written as 10R and a 0.001u capacitor as 1n.
The markings on components are written slightly differently to the way they are shown on a circuit diagram (such as 100p on a circuit and 101 on the capacitor or 10 on a capacitor and 10p on a diagram) and you will have to look on the internet under Basic Electronics to learn about these differences.




For photos of nearly every electronic component, see this website: https://www.egr.msu.edu/eceshop/Parts_Inventory/totalinventory.php

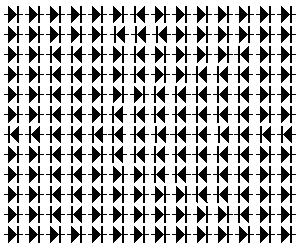

How good is your power of observation?
Can you find the LED:



POWERING A PROJECT
The safest way to power a project is with a battery. Each circuit requires a voltage from 3v to 12v. This can be supplied from a set of AA cells in a holder or you can also use a 9v battery for some projects.
If you want to power a circuit for a long period of time, you will need a "power supply."
The safest power supply is a Plug Pack (wall-wort, wall wart,
wall cube, power brick, plug-in adapter, adapter block, domestic mains adapter, power adapter, or AC adapter). Some plug packs have a switchable output voltage: 3v, 6v, 7.5v, 9v, 12v) DC with a current rating of 500mA. The black lead is negative and the other lead with a white stripe (or a grey lead with a black stripe) is the positive lead.
This is the safest way to power a project as the insulation (isolation) from the mains is provided inside the adapter and there is no possibility of getting a shock.
The rating "500mA" is the maximum the Plug Pack will deliver and if your circuit takes just 50mA, this is the current that will be supplied. Some pluck packs are rated at 300mA or 1A and some have a fixed output voltage. All these plug packs will be suitable.
Some Plug Packs are marked "12vAC."  This type of plug pack is not suitable for these circuits as it does not have a set of diodes and electrolytic to convert the AC to DC. All the circuits in this eBook require DC.

PROJECTS

FLASHING A LED
These 7 circuits flash a LED using a supply from 1.5v to 12v.
They all have a different value of efficiency and current consumption. You will find at least one to suit your requirements.
The simplest way to flash a LED is to buy a FLASHING LED as shown in figure A. It will work on 3v to 9v but it is not very bright - mainly because the LED is not high-efficiency.
A Flashing LED can be used to flash a super-bright red LED, as shown in figure B.
Figure C shows a flashing LED driving a buffer transistor to flash a white LED. The circuit needs 4.5v - 6v.
Figure D produces a very bright flash for a very short period of time - for a red, green, orange or white LED.
Figure E uses 2 transistors to produce a brief flash - for a red, green, orange or white LED.
Figure F uses a single cell and a voltage multiplying arrangement to flash a red or green LED.
Figure G flashes a white LED on a 3v supply.

CONSTANT CURRENT
These four circuits delivers a constant 12mA to any number of LEDs connected in series (to the terminals shown) in the following arrangements.
The circuits can be connected to 6v, 9v or 12v and the brightness of the LEDs does not alter.
You can connect:
1 or 2 LEDs to 6v,
1, 2 or 3 LEDs to 9v or
1, 2, 3 or 4 LEDs to 12v.
The LEDs can be any colour.
The constant-current section can be considered as a MODULE and can be placed above or below the load:

WHITE LED on 1.5v SUPPLY
This circuit will illuminate a white LED using a single cell.
See LED Torch Circuits article for more details.
     to Index
2 WHITE LEDs on 1.5v SUPPLY
This circuit will illuminate two white LEDs using a single cell.
See LED Torch Circuits article for more details.
     to Index
WHITE LED FLASHER
This circuit will flash a white LEDs using a single cell.
See LED Torch Circuits article for more details.
     to Index
SHAKE TIC TAC LED TORCH
In the diagram, it looks like the coils sit on the “table” while the magnet has its edge on the table. This is just a diagram to show how the parts are connected. The coils actually sit flat against the slide (against the side of the magnet) as shown in the diagram:
The output voltage depends on how quickly the magnet passes from one end of the slide to the other. That's why a rapid shaking produces a higher voltage. You must get the end of the magnet to fully pass though the coil so the voltage will be a maximum. That’s why the slide extends past the coils at the top and bottom of the diagram.

The circuit consists of two 600-turn coils in series, driving a voltage doubler. Each coil produces a positive and negative pulse, each time the magnet passes from one end of the slide to the other.
The positive pulse charges the top electrolytic via the top diode and the negative pulse charges the lower
electrolytic, via the lower diode.
The voltage across each electrolytic is combined to produce a voltage for the white LED. When the combined voltage is greater than 3.2v, the LED illuminates. The electrolytics help to keep the LED illuminated while the magnet starts to make another pass.

     to Index

LED DETECTS LIGHT
The LED in this circuit will detect light to turn on the oscillator. Ordinary red LEDs do not work. But green LEDs, yellow LEDs and high-bright white LEDs and high-bright red LEDs work very well.
The output voltage of the LED is up to 600mV when detecting  very bright illumination.
When light is detected by the LED, its resistance decreases and a very small current flows into the base of the first transistor. The transistor amplifies this current about 200 times  and the resistance between collector and emitter decreases. The 330k resistor on the collector is a current limiting resistor as the middle transistor only needs a very small current for the circuit to oscillate. If the current is too high, the circuit will "freeze."
The piezo diaphragm does not contain any active components and relies on the circuit to drive it to produce the tone.
     to Index

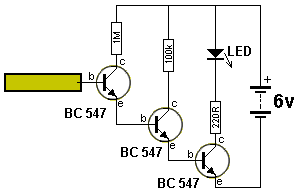

8 MILLION GAIN!
This circuit is so sensitive it will detect "mains hum."  Simply move it across any wall and it will detect where the mains cable is located. It has a gain of about 200 x 200 x 200 = 8,000,000 and will also detect static electricity and the presence of your hand without any direct contact. You will be amazed what it detects!  There is static electricity EVERYWHERE! The input of this circuit is classified as very high impedance.


Here is a photo of the circuit, produced by a constructor.
to Index
 LEDs on 240v
I do not like any circuit connected directly to 240v mains. However Christmas tress lights (globes) have been connected directly to the mains for 30 years without any major problems.
Insulation must be provided and the lights (LEDs) must be away from prying fingers.
You need at least 50 LEDs in each string
to prevent them being damaged via a surge through the 1k resistor - if the circuit is turned on at the peak of the waveform. As you add more LEDs to each string, the current will drop a very small amount until eventually, when you have 90 LEDs in each string, the current will be zero.
For 50 LEDs in each string, the total characteristic voltage will be 180v so that the peak voltage will be 330v - 180v = 150v. Each LED will see less than 7mA peak during the half-cycle they are illuminated (because the voltage across the 0.22u is 150v and this voltage determines the current-flow). The 1k resistor will drop 7v - since the RMS current is 7mA  (7mA x 1,000 ohms = 7v). No rectifier diodes are needed. The LEDs are the "rectifiers."  Very clever. You must have LEDs in both directions to charge and discharge the capacitor. The resistor is provided to take a heavy surge current through one of the strings of LEDs if the circuit is switched on when the mains is at a peak. This can be as high as 330mA if only 1 LED is used, so the value of this resistor must be adjusted if a small number of LEDs are used. The LEDs above detect peak current. The LEDs are turned on and off 50 times per second and this may create "flickering" or "strobing."  To prevent this flicker, see the DC circuit below:

A 100n cap will deliver 7mA RMS or 10mA peak in full wave or 3.5mA RMS (10mA peak for half a cycle) in half-wave.  (when only 1 LED is in each string).

The current-capability of a capacitor needs more explanation.  In the  diagram on the left we see a capacitor feeding a full-wave power supply. This is exactly the same as the LEDs on 240v circuit above. Imagine the LOAD resistor is removed. Two of the diodes will face down and two will face up. This is exactly the same as the LEDs facing up and facing down in the circuit above. The only difference is the mid-point is joined. Since the voltage on the mid-point of one string is the same as the voltage at the mid-point of the other string, the link can be removed and the circuit will operate the same.
This means each 100n of capacitance will deliver 7mA RMS (10mA peak on each half-cycle).
In the half-wave supply, the capacitor delivers 3.5mA RMS (10mA peak on each half-cycle, but one half-cycle is lost in the diode)  for each 100n to the load, and during the other half-cycle the 10mA peak is lost in the diode that discharges the capacitor.
You can use any LEDs and try to keep the total voltage-drop in each string equal. Each string is actually working on DC. It's not constant DC but varying DC. In fact is it zero current for 1/2 cycle then nothing until the voltage rises above the total characteristic voltage of all the LEDs, then a gradual increase in current over the remainder of the cycle, then a gradual decrease to zero over the falling portion of the cycle, then nothing for 1/2 cycle. Because the LEDs turn on and off, you may observe some flickering and that's why the two strings should be placed together.

SINGLE LED on 240v
A single LED can be illuminated by using a 100n or 220n capacitor with a rating of 400v. These capacitors are called "X2" and are designed to be connected to  the mains.
The LED will be 240v above earth if the active and neutral are swapped and this represents a shock of over 340v if anything is exposed. The power diode in the first diagram is designed to discharge the 0.22u during one half of the cycle so that the capacitor will charge during the other half-cycle and deliver energy to the LED. The 1k resistor limits the peak in-rush current when the circuit is first turned on and the mains happens to be at a peak.

Two LEDs can be driven from the same circuit as one LED will be illuminated during the first half cycle and the other LED will be driven during the second half of the cycle.


LEDs can also be connected to the mains via a power diode and current-limiting resistor. But the wattage lost (dropped) in the resistor is about 2.5 watts and a 3 watt resistor will be needed to illuminate a 70mW white LED.
This is an enormous waste of energy and a capacitor-fed supply shown above is the best solution.
When 50 to 80 white LEDs are connected in series, a resistor can be used. For 50 white LEDs, use a 4k7 2watt resistor to provide 10mA average current.
For 100 white LEDs, use a 2k2 1watt resistor to provide 10mA average current.
The circuit will not work with more than 95 LEDs as the characteristic voltage-drop across the combination will be more than the peak of the supply (340v).

DC CONNECTION
To prevent "flickering' or "strobing," the LEDs must be driven with DC. This requires a BRIDGE.
The 0.22u will deliver 15mA when one LED is connected to the output. As additional LEDs are connected, the current gradually reduces to zero with 100 LEDs.
40 LEDs will be provided with:
345 - 145 = 200v  = 200/345 x 15 = 8.6mA
to Index
MAINS NIGHT LIGHT
The circuit illuminates a column of 10 white LEDs. The 10u prevents flicker and the 100R also reduces flicker.

This circuit is classified as a CONSTANT CURRENT GENERATOR or CONSTANT CURRENT CIRCUIT.
This means any component placed on the output of the circuit will pass 7mA if the capacitor is 100n on a 240v supply or 4.7 x 7mA  = 33mA if the capacitor is 470n.
This also applies to a short-circuit on the output.
If no load is connected, the output voltage will be 230v x 1.4 = 320v and if the voltage across the load is 100v, the output will be reduced to about 20mA. If the output voltage is 200v, the current will be 10mA and if the output voltage is 300v, the current will be 0mA. In our case the output voltage will be about 35v and the current will be 30mA.
This means you cannot add LEDs endlessly. A time will come when they will simply not illuminate.
LED DIMMER
This circuit will adjust the brightness of one or more LEDs from 5% to 95%.
to Index
DRIVING A BI-COLOUR LED
Some 3-leaded LEDs produce red and green. This circuit alternately flashes a red/green bi-coloured LED:
to Index
BI-POLAR LED DRIVER
Some 2-leaded LEDs produce red and green. These are called Bi-polar LEDs. This circuit alternately flashes a red/green bi-polar LED:
to Index
RGB LED DRIVER
This is a simple driver circuit that drives the 3 LEDs in an RGB LED to produce a number of interesting colours. Even though the component values are identical in the three oscillators, the slight difference in tolerances will create a random display of colours and it will take a while for the pattern to repeat.
The colours change abruptly from one colour to another as the circuit does not use Pulse Width Modulation to produce a gradual fading from one colour to another.
This LED is called COMMON ANODE. This has been done so it can be connected to transistors or other devices that "SINK."
The second circuit a common cathode LED.
Note the different pinout.
to Index
RGB LED FLASHER
This LED flashes at a fast rate then a slow rate. It only requires a current-limiting resistor of 100R for 4.5v to 6v supply or 470R for 7v to 12v supply.




There are two different types of RGB LEDs. The RGB LED Driver circuit above uses an RGB LED with 4 leads and has 3 coloured chips inside and NOTHING ELSE.
The LED described in the video has 2 leads and requires a dropper resistor so that about 20mA flows. The LED also contains a microcontroller producing PWM signals. If you cannot get the 2-leaded LED, you can use a 4-leaded LED plus the circuit below. It is an analogue version of the circuit inside the self-flashing LED, for the slow-rate:

As with everything Chinese, the self-flashing LED is too gimmicky.
It is better to produce your own colour-change via the circuit above. You can alter the rate by changing the value of the components and/or remove one or more of the 100u's. The circuit for a common cathode RGB LED is shown in the RGB LED Driver above.
KNIGHT RIDER
In the Knight Rider circuit, the 555 is wired as an oscillator. It can be adjusted to give the desired speed for the display. The output of the 555 is directly connected to the input of a Johnson Counter (CD 4017). The input of the counter is called the CLOCK line.
The 10 outputs Q0 to Q9 become active, one at a time, on the rising edge of the waveform from the 555. Each output can deliver about 20mA but a LED should not be connected to the output without a current-limiting resistor (330R in the circuit above).
The first 6 outputs of the chip are connected directly to the 6 LEDs and these "move" across the display. The next 4 outputs move the effect in the opposite direction and the cycle repeats. The animation above shows how the effect appears on the display.
Using six 3mm LEDs, the display can be placed in the front of a model car to give a very realistic effect. The same outputs can be taken to driver transistors to produce a larger version of the display.




















Here is a simple Knight Rider circuit using resistors to drive the LEDs. This circuit consumes 22mA while only delivering 7mA to each LED. The outputs are "fighting" each other via the 100R resistors (except outputs Q0 and Q5).


TRAFFIC LIGHTS
Here's a clever circuit using two 555's to produce a set of traffic lights for a model layout.
The animation shows the lighting sequence and this follows the Australian-standard. The red LED has an equal on-off period and when it is off, the first 555 delivers power to the second 555. This illuminates the Green LED and then the second 555 changes state to turn off the Green LED and turn on the Orange LED for a short period of time before the first 555 changes state to turn off the second 555 and turn on the red LED. A supply voltage of 9v to 12v is needed because the second 555 receives a supply of about 2v less than rail. This circuit also shows how to connect LEDs high and low to a 555 and also turn off the 555 by controlling the supply to pin 8.  Connecting the LEDs high and low to pin 3 will not work and since pin 7 is in phase with pin 3, it can be used to advantage in this design.

 to Index
4 WAY TRAFFIC LIGHTS
This circuit produces traffic lights for a "4-way" intersection. The seemingly complex  wiring to illuminate the lights is shown to be very simple.
DRIVING MANY LEDS
The 555 is capable of sinking and sourcing up to 200mA, but it gets very hot when doing this on a 12v supply.
The following circuit shows the maximum number of white LEDs that can be realistically driven from a 555 and we have limited the total current to about 130mA as each LED is designed to pass about 17mA to 22mA maximum. A white LED drops a characteristic 3.2v to 3.6v and this means only 3 LEDs can be placed in series.

3x3x3 CUBE
This circuit drives a 3x3x3 cube consisting of 27 white LEDs. The 4020 IC is a 14 stage binary counter and we have used 9 outputs. Each output drives 3 white LEDs in series and we have omitted a dropper resistor as the chip can only deliver a maximum of 15mA per output. The 4020 produces 512 different patterns before the sequence repeats and you have to build the project to see the effects it produces on the 3D cube.

UP/DOWN FADING LED
These two circuits make a LED fade on and off. The first circuit charges a 100u and the transistor amplifies the current entering the 100u and delivers 100 times this value to the LED via the collector-emitter pins. The circuit needs 9v for operation since pin 2 of the 555 detects 2/3Vcc before changing the state of the output so we only have a maximum of 5.5v via a 220R resistor to illuminate the LED. The second circuit requires a very high value electrolytic to produce the same effect.


UP/DOWN FADING LED-2
The circuit fades the LED ON and OFF at an equal rate. The 470k charging and 47k discharging resistors have been chosen to create equal on and off times.


BIKE TURNING SIGNAL
This circuit
can be used to indicate left and right turn on a motor-bike. Two identical circuits will be needed, one for left and one for right.

POLICE LIGHTS
These three circuits flash the left LEDs 3 times then the right LEDs 3 times, then repeats. The only difference is the choice of chips.



LED DICE with Slow Down
This circuit produces a random number from 1 to 6 on LEDs that are similar to the pips on the side of a dice. When the two TOUCH WIRES are touched with a finger, the LEDs flash very quickly and when the finger is removed, they gradually slow down and come to a stop. LED Dice with Slow Down kit is available from Talking Electronics.



ROULETTE
This circuit creates a rotating LED that starts very fast when a finger touches the TOUCH WIRES. When the finger is removed, the rotation slows down and finally stops.
 to Index
DICE TE555-4


This circuit uses the latest
TE555-4 DICE chip from Talking Electronics. This 8-pin chip is available for $2.50 and drives a 7-Segment display. The circuit can be assembled on proto-type board.

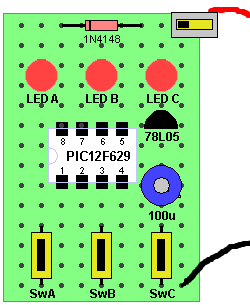

LED FX TE555-5


This circuit uses the latest
TE555-5 LED FX chip from Talking Electronics. This 8-pin chip is available for $2.50 and drives 3 LEDs. The circuit can be assembled on matrix board.
The circuit produces 12 different sequences including flashing, chasing, police lights and flicker.
It also has a feature where you can create your own sequence and it will show each time the chip is turned on.



SOLAR GARDEN LIGHT
This is the circuit in a $2.00 Solar Garden Light.
The circuit illuminates a white LED from a 1.2v rechargeable cell.
SOLAR TRACKER
This circuit is a SOLAR TRACKER. It uses green LEDs to detect the sun and an H-Bridge to drive the motor. A green LED produces nearly 1v but only a fraction of a milliamp when sunlight is detected by the crystal inside the LED and this creates an imbalance in the circuit to drive the motor either clockwise or anticlockwise. The circuit will deliver about 300mA to the motor.


BATTERY MONITOR  MkI
A very simple battery monitor can be made with a dual-colour LED and a few surrounding components. The LED produces orange when the red and green LEDs are illuminated.
The following circuit turns on the red LED below 10.5v
The orange LED illuminates between 10.5v and 11.6v.
The green LED illuminates above 11.6v
BATTERY MONITOR  MkII
This battery monitor circuit uses 3 separate LEDs.
The red LED turns on from 6v to below 11v.
It turns off above 11v and
The orange LED illuminates between 11v and 13v.
It turns off above 13v and
The green LED illuminates above 13v
to Index
LOW FUEL INDICATOR
This circuit
has been designed from a request by a reader. He wanted a low fuel indicator for his motorbike. The LED illuminates when the fuel gauge is 90 ohms. The tank is empty at 135 ohms and full at zero ohms. To adapt the circuit for an 80 ohm fuel sender, simply reduce the 330R to 150R. (The first thing you have to do is measure the resistance of the sender when the tank is amply.)

LED ZEPPELIN

The game consists of six LEDs and an indicator LED that flashes at a rate of about 2 cycles per second. A push button is the "Operations Control" and by carefully pushing the button in synchronisation with the flashing LED, the row of LEDs will gradually light up.
But the slightest mistake will immediately extinguish one, two or three LEDs. The aim of the game is to illuminate the 6 LEDs with the least number of pushes.
We have sold thousands of these kits. It's a great challenge.

THE DOMINO EFFECT

Here's a project with an interesting name. The original design was bought over 40yearsa ago, before the introduction of the electret microphone. They used a crystal earpiece.
We have substituted it with a piezo diaphragm and used a quad op-amp to produce two building blocks. The first is a high-gain amplifier to take the few millivolts output of the piezo and amplify it sufficiently to drive the input of a counter chip. This requires a waveform of at least 6v for a 9v supply and we need a gain of about 600.
The other building block is simply a buffer that takes the high-amplitude waveform and delivers the negative excursions to a reservoir capacitor (100u electrolytic). The charge on this capacitor turns on a BC557 transistor and this effectively takes the power pin of the counter-chip to the positive rail via the collector lead.
The chip has internal current limiting and some of the outputs are taken to sets of three LEDs.
The chip is actually a counter or divider and the frequency picked up by the piezo is divided by 128 and delivered to one output and divided by over 8,000 by the highest-division output to three more LEDs The other lines have lower divisions.
This creates a very impressive effect as the LEDs are connected to produce a balanced display that changes according to the beat of the music.
The voltage on the three amplifiers is determined by the 3M3 and 1M voltage-divider on the first op-amp. It produces about 2v. This makes the output go HIGH and it takes pin 2 with it until this pin see a few millivolts above pin3. At this point the output stops rising.
Any waveform (voltage) produced by the piezo that is lower than the voltage on pin 3 will make the output go HIGH and this is how we get a large waveform.
This signal is passed to the second op-amp and because the voltage on pin 6 is delayed slightly by the 100n capacitor, is also produces a gain.
When no signal is picked up by the piezo, pin 7 is approx 2v and pin 10 is about 4.5v.  Because pin 9 is lower than pin 10, the output pin 8 is about 7.7v (1.3v below the supply rail) as this is as high as the output will go - it does not go full rail-to-rail.
The LED connected to the output removes 1.7v, plus 0.6v between base and emitter and this means the transistor is not turned on.
Any colour LEDs can be used and a mixture will give a different effect.
to Index
10 LED CHASER
Here's an interesting circuit that creates a clock pulse for a 4017 from a flashing LED. The flashing LED takes almost no current between flashes and thus the clock line is low via the 1k to 22k resistor. When the LED flashes, the voltage on the clock line is about 2v -3v below the rail voltage (depending on the value of the resistor) and this is sufficient for the chip to see a HIGH.

(circuit designed on 9-10-2010)

Emergency PHONE-LINE LIGHT
Here's a project that uses the phone line to illuminate a set of white LEDs.
The circuit delivers a current of 4.5mA as any current above 10mA will be detected by the exchange as the hand-set off the hook.
Be warned: This type of circuit is not allowed as it uses the energy from the phone line (called "leeching") and may prevent the phone from working.

EQUAL BRIGHTNESS
A 2-leaded dual colour LED can be connected to the outputs of a microcontroller and the brightness can be equalized by using the circuits shown.

FLICKERING LED
A Flickering LED is available from eBay and some electronics shops.
It can be connected to a supply from 2v to 6v and needs an external resistor when the supply is above 3v. The LED has an internal circuit to create the flickering effect and limit the current. We suggest adding a 150R resistor when the supply is above 3v and up to 6v. Above 6v, the current-limit resistor should be increased to 220R for 9v and 330R for 12v.
You can connect the flickering LED to an ordinary LED and both will flicker. Here are some arrangements:

The Pulse-Width Modulation to activate the flickering can be observed on an oscilloscope by connecting the probe across the LED. It is a very complex waveform. It is approx 1v in amplitude and approx 15 x 1kHz pulses to create each portion of the on-time, something like this:
The pulses vary in width to create a brighter illumination.


CONSTANT-CURRENT 7805 DRIVES  1 WATT LED
The circuit can be reduced to 2 components:


The 7805 can be converted into a content-current device by connecting a resistor as shown above.
We will take the operation of the circuit in slow-motion to see how it works.
As the 12v rises from 0v, the 7805 starts to work and when the input voltage is 4v, the output is 1v as a minimum of 3v is lost across the 7805. The voltage rises further and when the output is 5v, current flows through the 15R resistor and illuminates the LED. The LED starts to illuminate at 3.4v and the voltage across the 15R at the moment is 1.6v and the output current will be 100mA. The input voltage keeps rising and now the output voltage is 7v. The current through the LED increases and now the voltage across the LED is 3.5v. The voltage across the 15R is 3.5v and the current is 230mA.
The input voltage keeps rising and the output voltage is now 8.6v The current through the LED increases and the voltage across the LED is now 3.6v. The voltage across the 15R is 5v and the current is 330mA. The input voltage keeps rising but a detector inside the 7805 detects the output voltage is exactly 5v above the common and the output voltage does not rise any more. The input voltage can rise above 13v, 14v  . . . . 25v or more but the output voltage will not rise.
If the output voltage rises, more current will be delivered to the LED and the voltage across the 15R will increase. The 7805 will not allow this to happen.
The LED will have 3.6v across it. The 15R will have 5v across it and the output will be 8.6v. The input voltage will have to be at least 12.6v for the 7805 to operate.
                                         to
1-WATT LED - very good design

Circuit takes 70mA on LOW brightness and 120mA on HIGH Brightness
This circuit has been specially designed for a 6v rechargeable battery or 5 x 1.2v NiCad cells. Do not use any other voltage.
It has many features:
The pulse-operation to the two 1-watt LEDs delivers a high current for a short period of time and this improves the brightness.
The circuit can drive two 1-watt LEDs with extremely good brightness and this makes it more efficient than any other design.
The circuit is a two-transistor high-frequency oscillator and it works like this:
The BD139 is turned ON via the base, through the white LED and two signal diodes and it amplifies this current to appear though the collector-emitter circuit. This current flows though the 1-watt LED to turn it ON and also through the 30-turn winding of the inductor. At the same time the current through the 10R creates a voltage-drop and when this voltage rises to 0.65v, the BC547 transistor starts to turn ON. This robs the base of the BD139 of "turn-on voltage" and the current through the inductor ceases to be expanding flux, but stationary flux.
The 1n capacitor was initially pushing against the voltage-rise on the base of the BC547 but it now has a reverse-effect of allowing the BC547 to turn ON.
This turns off the BD139 a little more and the current through the inductor reduces.
This creates a collapsing flux that produces a voltage across the coil in the opposite direction. This voltage passes via the 1n to turn the BC547 ON and the BD139 is fully turned OFF.
The inductor effectively becomes a miniature battery with negative on the lower LED and positive at the anode of the Ultra Fast diode. The voltage produced by the inductor flows through the UF diode and both 1-watt LEDs to give them a spike of high current. The circuit operates at approx 500kHz and this will depend on the inductance of the inductor.
The circuit has about 85% efficiency due to the absence of a current-limiting resistor, and shuts off at 4v, thus preventing deep-discharge of the rechargeable cells or 6v battery.
The clever part of the circuit is the white LED and two diodes. These form a zener reference to turn the circuit off at 4v. The 10k resistor helps too.
The circuit takes 70mA on low brightness and 120mA on HIGH brightness via the brightness-switch.
The LEDs actually get 200mA pulses of current and this produces the high brightness.

The Inductor
The coil or inductor is not critical. You can use a broken antenna rod from an AM radio (or a flat antenna slab) or an inductor from a computer power supply. Look for an inductor with a few turns of thick wire (at least 30) and you won't have to re-wind it.


The cost of surplus is from 10 cents to 50 cents, but you are sure to find something from a computer power supply.
Pick an inductor that is about 6mm to 10mm diameter and 10mm to 15mm high. Larger inductor will not do any damage. They simply have more ferrite material to store the energy and will not be saturated. It is the circuit that delivers the energy to the inductor and then the inductor releases it to the LEDs via the high speed diode.

IMPROVEMENT
By using the following idea, the current reduces to 90mA and 70mA and the illumination over a workbench is much better than a single high-power LED. It is much brighter and much nicer to work under.
Connect fifteen 5mm LEDs in parallel (I used 20,000mcd LEDs) by soldering them to a double-sided strip of PC board, 10mm wide and 300mm long. Space them at about 20mm. I know you shouldn't connect LEDs in parallel, but the concept works very well in this case. If some of the LEDs have a characteristic high voltage and do not illuminate very brightly, simply replace them and use them later for another strip.
You can replace one or both the 1-watt LEDs with a LED Strip, as shown below:

No current-limit resistor.  .  . why isn't the LED damaged?
Here's why the LED isn't damaged:
When the BD139 transistor turns ON, current flows through the LEDs and the inductor. This current gradually increases due to the gradual turning-on of the transistor and it is also increasing through the inductor. The inductor also has an effect of slowing-down the "in-rush" of current due to the expanding flux cutting the turns of the coil, so there is a "double-effect" on avoiding a high initial current.  That's why there is little chance of damaging the LEDs.
When it reaches 65mA, it produces a voltage of .065 x 10 = 650mV across the 10R resistor, but the 1n is pushing against this increase and it may have to rise to 150mA to turn on the BC547. LEDs can withstand 4 times the normal current for very short periods of time and that's what happens in this case. The BD139 is then turned off by the voltage produced by the inductor due to the collapsing magnetic flux and a spike of high current is passed to the LEDs via the high speed diode. During each cycle, the LEDs receive two pulses of high current and this produces a very high brightness with the least amount of energy from the supply. All the components run "cold" and even the 1-watt LEDs are hardly warm.

Charging and Discharging
This project is designed to use all your old NiCad cells and mobile phone batteries.
It doesn't matter if you mix up sizes and type as the circuit takes a low current and shuts off when the voltage is approx 4v for a 6v pack.
If you mix up 600mA-Hr cells with 1650mA-Hr, 2,000mA-Hr and 2,400mA-Hr, the lowest capacity cell will determine the operating time.
The capacity of a cells is called "C."
Normally, a cell is charged at the 14 hour-rate.
The charging current is 10% of the capacity. For a 600mA-Hr cell, this is 60mA. In 10 hours it will be fully charged, but charging is not 100% efficient and so we allow another 2 to 4 hours.
For a 2,400mA-Hr cell, it is 240mA. If you charge them faster than 14-hr rate, they will get HOT and if they get very hot, they may leak or even explode. But this project is designed to be charged via a solar panel using 100mA to 200mA cells, so nothing will be damaged.
Ideally a battery is discharged at C/10 rate. This means the battery will last 10 hours and for a 600mA-Hr cell, this is 60mA. If you discharge it at the "C-rate," it will theoretically last 1 hour and the current will be 600mA. But at 600mA, the cells may only last 45 minutes. If you discharge is at C/5 rate, it will last 5 hours.
Our project takes 120mA so no cell will be too-stressed. A 600mA-Hr cell will last about  4-5 hours, while the other cells will last up to 24 hours.   Try to keep the capacity of each cell in a "battery-pack" equal.

to Index
FL
The




 to Index
FLASHING RAILROAD LIGHTS
This circuit flashes two red LEDs for a model railway crossing.
 to Index
                 to Index
If 3rd band is gold, Divide by 10
If 3rd band is silver, Divide by 100
(to get 0.22ohms etc)

Not copyright     Colin Mitchell    You can copy and use anything for your own personal use.
